Machines & equipment for sale

Podmore Engineers Centreless Belt Linisher

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Part of a Direct Site Clearance
Aalberts Factory Clearance - CC Hydrosonics Solvac
Condition
From a working environment, Seen working by RSW, Good Condition
Location
Birmingham, UK
Buy Now Add to Quote Book Appointment
Stock No
AAB800
Manufacturer
Podmore
Model
Centreless
Serial
26798
Condition
From a working environment, Seen working by RSW, Good Condition
R.P.M.
Variable
Other Info
Load table 800mm x 500 mm x 1070mm
Location
Birmingham, UK
External Dimensions (WxDxH mm) [?]
1900mm long x 1620mm wide x 2200mm high
Delivery
Your delivery options

Description

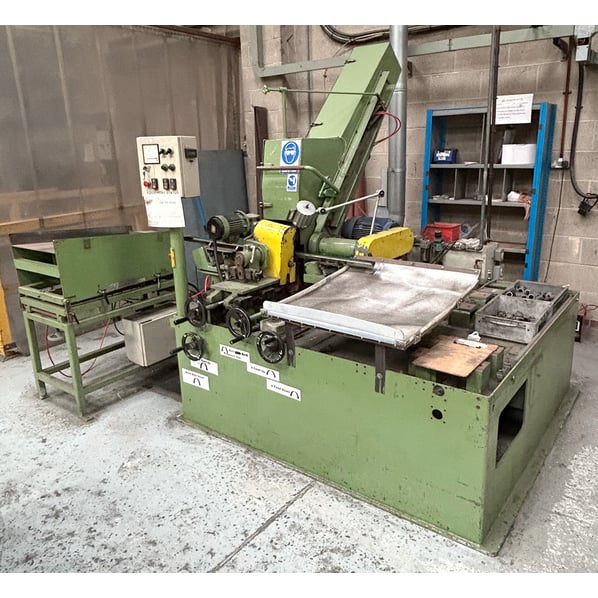

Podmores Engineers centreless belt linisher, ideal for bars, rods & tubes up to 100mm. Multiple adjustment controls to give the required settings, variable speed control, ideal for batch component manufacture.

Overview

  • Belt linishing machine for rods, tubes or bars in the region of 25mm diameter manufactured by Podmore Engineering of Stoke on Trent.
  • In current use and seen working. Video of operation taken by WDG.
  • Fitted with loading table supplied by Centreless Tooling Company Ltd.
  • Extraction duct, currently connected to a Carter Fume Washer.
  • Nominal plant footprint: 1900mm long x 1620 mm wide x 650mm high base unit, 2200mm to top of belt housing.
  • Load table 800mm long x 500 mm wide x 1070mm high.

Specification

  • Manufacturer: Podmores (Engineers) Ltd.
  • In working condition.
  • In current use.
  • Serial Number: 26798
  • Nominal overall dimensions: 1900mm long x 1620mm wide x 650mm high (base) x 2200mm high.(top of belt housing)
  • Fitted with loading table supplied by Centreless Tooling Company Ltd.
  • Load table 800mm long x 500 mm wide x 1070mm high
  • Machine capacity: Bars up to approximately 100mm diameter
  • Available from site November 2025.
  • Manual adjusting wheels for belt up/down, pressure control, feed up and feed down control.

Available from site November 2025.

pdf icon Print / Download Podmore Engineers Centreless Belt Linisher Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
