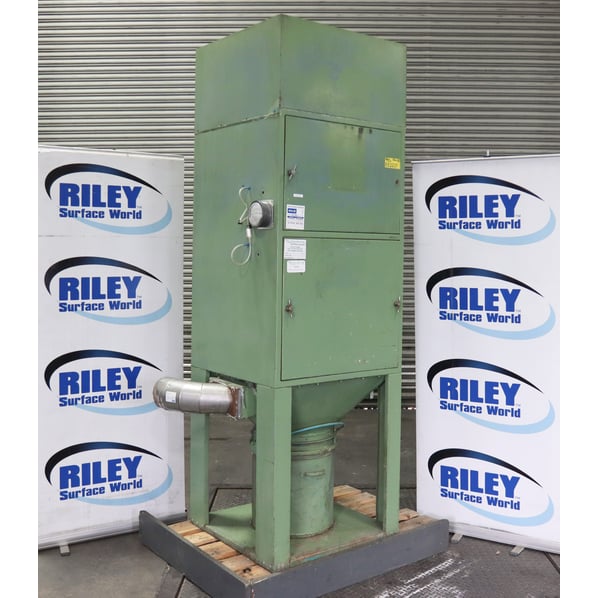

Donaldson Torit (DCE) Unimaster UMA, Bag Shaker Dust Extraction unit.

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EE2237
Manufacturer
Donaldson Torit (DCE)
Model
UMA 152/G5
Serial
157,430
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
1150 - 1950
Filter Area ft² / m²
150 / 15
Other Info
Fulimatic Shaker Control System
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
270
External Dimensions (WxDxH mm) [?]
1100 x 770 x 2020mm
Delivery
Your delivery options

Description

This pre owned Unimaster 152 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy. Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design features

  • 3.5kW // 5hp.
  • 415Volt, 3 phase.
  • Compact Design minimises floor space and fits in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation motors and fan are enclosed in collector housing to minimize noise.
  • Easy maintenance.
  • 2³ft collection bucket.
  • Quick-release lever allows for easy removal and maintenance of bin.
  • Inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
  • Bag-release screws allow for easy removal of bags.
  • Static Pressure 2000Pa.

Overall dimensions 1100mm x 770mm x 2020mm

pdf icon Print / Download Donaldson Torit (DCE) Unimaster UMA, Bag Shaker Dust Extraction unit. Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
