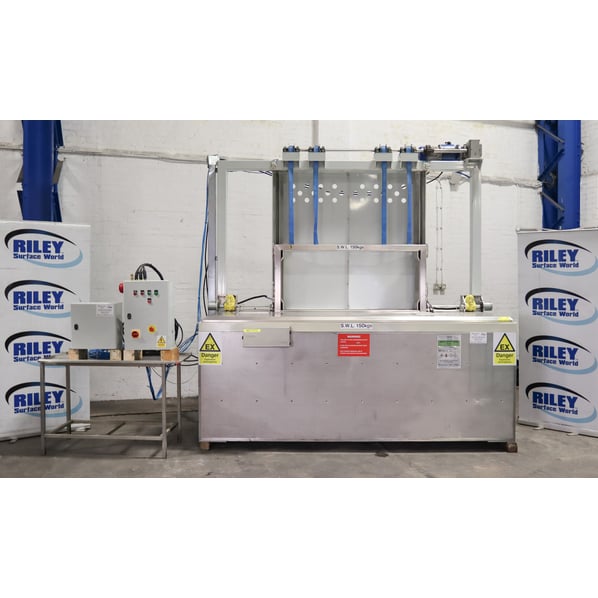

Ultra Projects Ltd 1500 Litres Sparge Agitation Tank

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DE1595J
Manufacturer
Ultra Projects Ltd
Model
1500 Litres Sparge Agitation Tank
Year of Manufacture
2018
Serial
18/200
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
2700 x 900 x 640mm (1500Litres)
Process Stages
Two Stage, Immersion & Sparge Agitation
Other Info
Stainless Steel : Fume Extraction Fan
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1650 kg
External Dimensions (WxDxH mm) [?]
3050 x 1800 x 3000mm
Delivery
Your delivery options

Description

Electrically operated immersion/ Sparge agitation solvent dunk cleaning/degreasing machine. Manufactured from stainless steel this very large immersion/agitation solvent cleaning machine comes with a bifurcated fume extraction fan suitable for connecting to a suitable fume scrubber or extraction unit.

A two handed control lowers the carrier and workpieces into the solvent for cleaning, when the cycle if complete the operator raises the wash basket to the loading position for unloading and replenishing for the next cycle.

This machine is particularly effective for cleaning tubular items or components that have hollows which need to be flushed through with solvent. This machine is fitted with an electric drive motor which is connected via hoist straps to the wash basket carrier. When the carrier is lowered into the cleaning solution a constant stream of compressed air is forced under the carrier and workpieces to agitate any dirt and grease from the components. As the air rises through the media, it  agitates any particles from the components thus cleaning them.

Specification

  • 415 Volt, 3 phase, 50 Hz
  • Stainless steel construction
  • Designed for white spirit, solvent cleaning
  • Pneumatic lid activation
  • Bifurcated fume extraction fan
  • Audible alarm system

Optional Heating

This plant currently operates at room temperature, if required heating element and controls can be added to customer specifications to give a higher standard of

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.





pdf icon Print / Download Ultra Projects Ltd 1500 Litres Sparge Agitation Tank Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
