Machines & equipment for sale

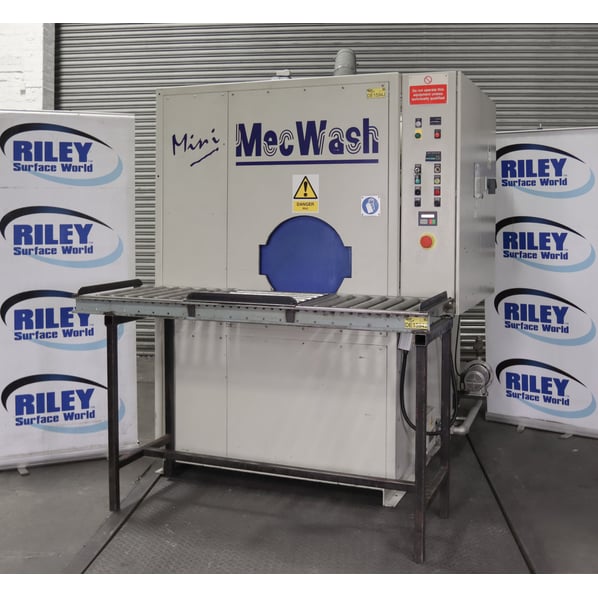

MecWash Mini 300 Cleaning System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DE1594J
Manufacturer
MecWash
Model
Mini 300
Year of Manufacture
1998
Serial
M191
Condition
From a working environment, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
300mm x 600mm x 300mm
Process Stages
Solo wash & Dry system
Other Info
Inc. Full Manual and Electrical Drawings
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
955
External Dimensions (WxDxH mm) [?]
1750mm x 1900mm x 2200mm
Delivery
Your delivery options

Description

Providing an excellent washing performance in a single chamber, this Mecwash offers a multiple process system using high volume, low pressure spray and flood washing with hot air drying facility.

Ideal for the cleaning and degreasing of a wide range of metal components, removing machining and forming lubricants, metal swarf and other contaminants.

All wetted parts of the machine are constructed from stainless steel, and this means that the machine is able to carry out a wide range of cleaning, surface preparation and surface finishing processes including chromate conversion and phosphate coatings.

Process

  1. Flood wash
  2. Spray wash
  3. Drain
  4. Hot air dry
  5. Steam extraction

Details

  • High volume spray and flood wash (500 - 1,000 litres per minute flow) maximises parts penetration of even dense workloads.
  • Rotational action and oscillation permits wash solution access to all faces and recesses - even 'difficult' areas such as oil galleries, blind holes and water jackets emerge fully clean and dry.
  • Design accommodates standard tote pans, plastic containers, or tailored baskets and fixtures.
  • Fully enclosed design with steam hot air drying - eliminating risk of fumes.
  • Fully programmable system incorporates process display, and fault diagnostics.
  • Automatic water top-up and chemical dosing.
  • Hot air drying to guarantee the removal of entrapped water in deep, small diameter blind holes, internal galleries.
  • Inline filters 32µ (8 new filters included)

Specification

  • MAC10 Programme controller
  • 3 rotation speeds of  7, 12 and 18 rev/Min are available
  • Fluid capacity of re-circulating wash tank – 450 Litre
  • Dimensions (WxDxH) -  1750mm x 1900mm x 2200mm
  • Wash Chamber Size (WxDxH) - 300mm x 600mm x 300mm
  • Maximum charge weight-  100kg
  • Filtration 500µm strainer basket, in-line filtration with user selectable filtration levels
  • Operating temperature - 60°C to 80°C
  • Wash tank heater - 18kW
  • Hot air drying heater - 12kW
  • Electrical Rating FLC - 32amps
  • 400 Volts, 3 phase & Neutral, 40 Amps

pdf icon Print / Download MecWash Mini 300 Cleaning System Datasheet

Additional files

Brochure

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
