Machines & equipment for sale

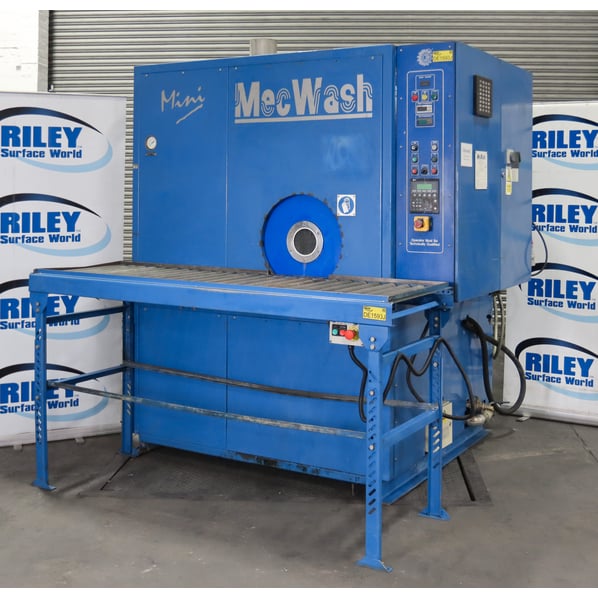

MecWash Mini 300 Automatic Washing Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DE1593J
Manufacturer
MecWash
Model
Mini 300 System
Year of Manufacture
08-2000
Serial
M271
Condition
From a working environment, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
300 x 600 x 300
Process Stages
Multiple - Variable
Other Info
Max. Charge Weight 50kg
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1930 x 1550 x 2350
Delivery
Your delivery options

Description

This Mecwash system provides excellent washing performance in a single chamber, multiple process system using high volume, low pressure spray and flood washing with vacuum drying facility.

This system is ideal for the cleaning and degreasing of a wide range of metal components, removing machining and forming lubricants, metal swarf and other contaminants.

All wetted parts of the machine are constructed from stainless steel, and this means that the machine is able to carry out a wide range of cleaning, surface preparation and surface finishing processes including chromate conversion and phosphate coatings. Rotational action and oscillation permits wash solution access to all faces and recesses - even 'difficult' areas such as oil galleries, blind holes and water jackets emerge fully clean and dry. Design accommodates standard tote pans, plastic containers, or tailored baskets and fixtures.

Fully enclosed design with steam condenser / hot air drying - eliminating risk of fumes with fully programmable system incorporates process display, 6 customised programs and fault diagnostics. It also features an automatic water top-up & chemical dosing plus vacuum drying to guarantee the removal of entrapped water in deep, small diameter blind holes, internal galleries.

Specification

  • Re-circulating wash (high volume flood and spray
  • Wash bag filter
  • Cold total loss rinse (high pressure)
  • Micro filtration
  • Hot air dry
  • Hot air temperature controller
  • De-min cylinder

Capacities

  • Fluid capacity of re-circulating wash tank - 550 litres
  • Fluid capacity of re-circulating rinse tank - 220 litres
  • Fluid capacity of loss rinse tank - 45 litres
  • High volume spray and flood wash (500 - 1,000 litres per minute flow) maximises parts penetration of even dense workloads.

Operation Sequence

  1. Flood Wash (Re-circulating, hot or cold)
  2. Spray wash (Re-circulating, hot or cold)
  3. Wash return
  4. Spray rinse (Re-circulating, hot or cold)
  5. Rinse return
  6. Total loss rinse (Hot or cold)
  7. Drain
  8. Hot air dry
  9. Vacuum

Specifics

  • Filtration 500µm strainer basket, in-line filtration with user selectable filtration levels
  • 400 volt, 3 phase, 50 Hz
  • Typical operating temperature: 60°C - 80°C
  • Electrical rating FLC: 80amps
  • Dimensions - 1930mm x 1550mm x 2350mm
  • Wash chamber size (WxHxL) - 300mm x 300mm x 600mm
  • Maximum charge weight - 50kg
  • Ø6" flue connection
  • Original operator manual

pdf icon Print / Download MecWash Mini 300 Automatic Washing Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
