Machines & equipment for sale

Ransohoff Immersion / Dunk Washer

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
DE1592J
Manufacturer
Ransohoff
Model
600 Litres Dunk Washer
Serial
MC 881
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
740 x 570 x 200
Process Stages
Immersion & Agitation
Other Info
Max temp 65 °C, Oil Skimmer
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1380 x 1100 x 1700mm
Delivery
Your delivery options

Description

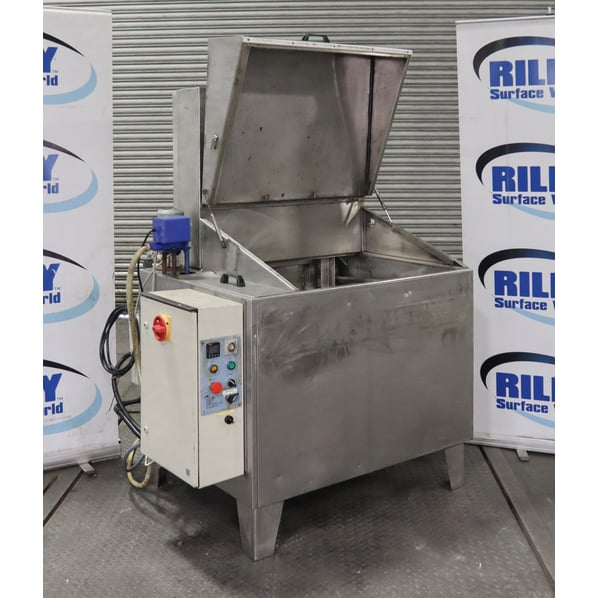

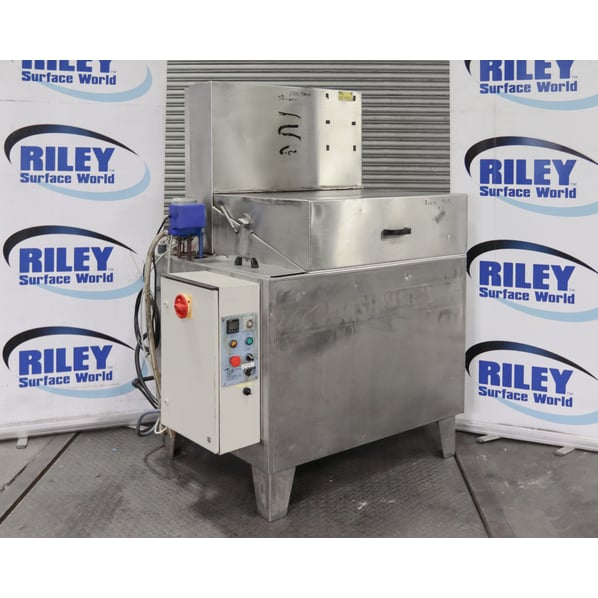

Compact yet powerful, this stainless steel Ransohoff  immersion/dunk washer offers efficient component cleaning with a 740mm x 570mm x 200mm work area, electric solution heating and pneumatic agitation with speed control. Delivering fast, consistent results for mechanically agitating parts in a chemical solution for a high quality cleaning operation.

The Agitating Cleaning Method

Moving the dirty parts up and down in the process solution shears dirt from the parts with the flushing action. Large parts can be placed on a parts fixture for individual washing or in a basket for smaller parts. Each vertical motion causes the solution to flood over the surface of the components including any deep recesses or pockets with a plunger action. This removes all types of dirt and grease utilising a wide range of aqueous cleaning solutions.

The simple design is virtually trouble free.

Features include

  • Overall dimensions - 1380mm x 1100mm x 1700mm
  •  Tank capacity - 600 litre (TBC)
  • Electric heating - 9kW
  • Stainless steel construction
  • Side spray bar
  • Interlocked lid
  • Side weir with oil skimmer
  • Bottom drain valve
  • Red Lion digital controller
  • Stroke/speed adjustment
  • Suitable for cellular manufacturing layouts

pdf icon Print / Download Ransohoff Immersion / Dunk Washer Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
