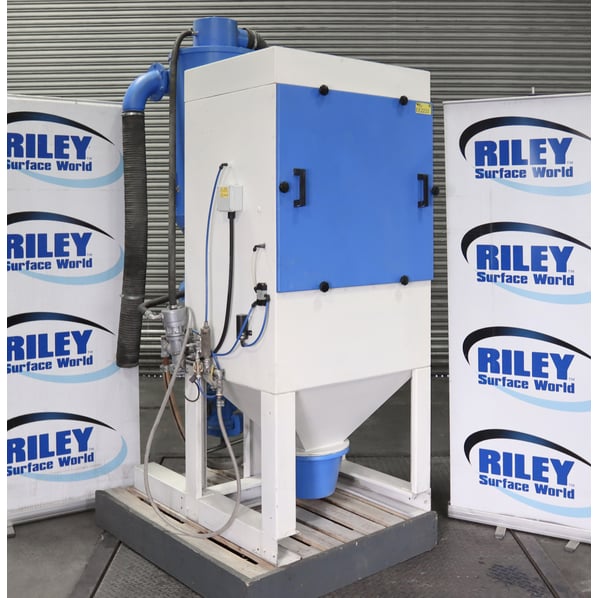

Wheelabrator Dust Extractor with Cyclone & Pressure Pot

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EE2233
Manufacturer
Wheelabrator
Model
Aircomprime
Year of Manufacture
1994
Serial
2416
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
Pot diameter 400mm
Work Handling Method
Manually Filled
Other Info
Max. Work Pressure 8 Bar : 42Litre Cap.
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1100 x 1400 x 2450 : Bucket Ø250 x 200mm
Delivery
Your delivery options

Description

Maximise efficiency and finish quality with this dust collector featuring a pressure pot and adjustable double-flux cyclone, which feeds the blast pot and nozzle with only regraded abrasives, keeping waste dust and fines out of the system. Perfect for pressure-fed blast cabinets like the Wheelabrator Ventus 125 & 150.

Versatility and Dust Capture

Highly adaptable, the dust collector is ideal for intermittent operations in plant processes. Several space-saving units can be placed at dust generation points resulting in total dust capture from the manufacturing processes.

Efficient filtration operation with cost-effective self-cleaning cycle.

Utilising high performance cartridge filters, contaminated air is drawn in through the inlet to the filter by the fan. Initially, some pre-separation takes place as heavier dust particles lose momentum and fall into the hopper.

Finer dusts are carried up to the filter elements and retained on the outer surface of the filter fabric. The cleaned air passes through the filter fabric into the fan chamber and is discharged. At the end of the process or of a shift the fan is switched off and the filter fabric cleaning cycle commences: Dust is dislodged from the filter elements and falls into the collector. This cleaning cycle requires no compressed air, reducing the services required and operating costs.

Features

  • Fan motor - 1.1kW
  • Number Cartridge filters - 3
  • Filter area (approx.) -  320ft³ // 30m³
  • Approx. CFM=1325 // 2250m³/Hr
  • Low noise levels
  • Robust construction
  • High ventilation rate
  • Dusty and pressure pot dimensions -  1100mm x 1400mm x 2450mm
  • Reverse jet dust collector with clean side filter change
  • Adjustable abrasive feeding
  • Sophisticated cyclone for efficient and adjustable abrasive separation
  • Aerated adjustable feed valve for even abrasive feed

pdf icon Print / Download Wheelabrator Dust Extractor with Cyclone & Pressure Pot Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
