SNOL 650°C Vertical Forced Circulation Furnace

New

Price [?]
Please call on +44 (0) 1922 45 8000
Guarantee
1 year manufacturer guarantee
Availability:
Available subject to build time
Condition
Brand New
Contact Us
Stock No
NEW078
Manufacturer
SNOL
Model
35/650
Condition
Brand New
Internal Size (WxDxH mm) [?]
300mm Ø x 500mm high
Max Temp
650°C
Other Info
35 litre capacity / 8 kW heater elements
External Dimensions (WxDxH mm) [?]
800 mm x 800 mm x 1200 mm
Delivery
Your delivery options

Description

The SNOL Electric Vertical Forced Circulation Furnace is a 650 °C top-loading furnace, designed for the hardening, normalising, and annealing of both shafts and general components.

This furnace is also suitable for metal component carbonisation (cementation) and tempering and hardening processes in oxidation and reduction environments.

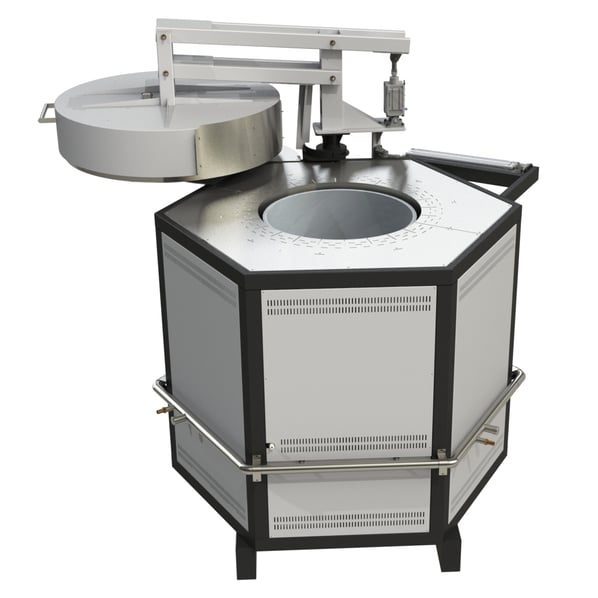

Workpieces can be suspended from jigs or placed in a single charge basket. The furnace configuration enables direct loading of components from above using a hoisting unit, allowing heavy individual parts to be handled with ease.

With this vertical loading arrangement, thinner parts are less prone to distortion when quenching is required as a secondary operation. The furnace is simple to maintain yet exceptionally robust, having proven itself reliable in even the most arduous heat-treatment environments.

The furnace is constructed with a profiled metal case and an internal chamber of Stainless Steel. Its heating system consists of nickel–chromium tubular elements mounted on robust supporting brackets. A motor-driven centrifugal fan mounted on the underside of the furnace forces air through the heating elements and down through the charge, ensuring efficient and uniform heat transfer.

Key Features and Applications

  • Omron E5CC-T Digital microprocessor temperature control
  • Digital over-temperature control
  • Integrated door safety cut-out switch
  • Chamber material – Stainless steel AISI 304
  • Swing-aside door with easy-lift lid mechanism
  • Manual furnace lid opening
  • Vertical orientation
  • Forced air circulation - ventilation motor on the bottom, vertical airflow
  • Capability for oxidising or non-oxidising controlled atmospheres
  • Solid State Relay (SSR) Power Control
  • Excellent temperature uniformity
  • Space efficiency: vertical design saves valuable floor space, particularly in cleanroom environments
  • Heating from 2 sides with tubular (U-shaped) heating elements
  • Capacity - 8 Litre

Temperature Range

The furnace can operate across a broad range of temperatures up to 650 °C.

Used for a wide range of thermal processes, including:

  • Tempering
  • Annealing
  • Normalizing
  • Drying
  • Curing
  • Artificial aging
  • Preheating

SNOL - A Leading Thermal Engineering Manufacturer

SNOLSNOL is one of the leading laboratory furnace manufacturers in the world. The company is based in Lithuania with subsidiaries in Germany and Ukraine. Founded in 1960 SNOL and is part of the Baltic State's largest metal processing group, employing over 700 people. 90% of production is exported from Lithuania into 40 countries in Europe and worldwide.

Riley Surface World and SNOL is a unique partnership. It combines Europe’s finest industrial and laboratory oven manufacturer with a UK company renowned for its high levels of industry knowledge, service and technical support.

SNOL tool room furnaces are available from stock or by special order, depending on requirements for temperature, size and metal treatment process.
