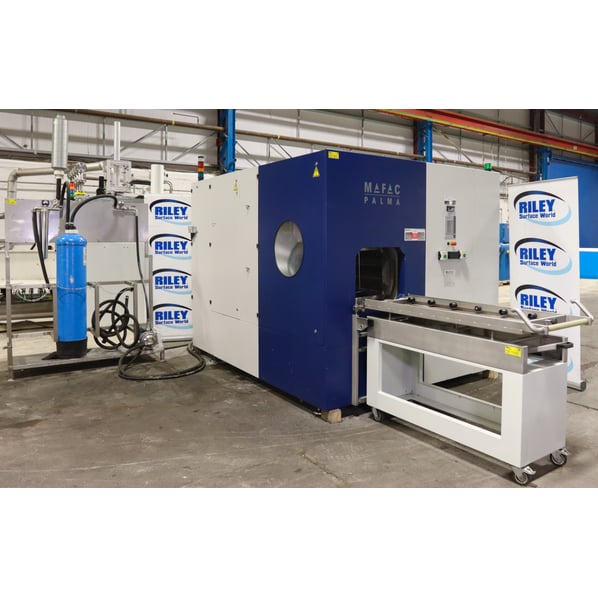

Mafac Palma Industrial Ultrasonic, Immersion & Spray Part Cleaning System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
Arriving in stock soon, available for purchase now.
Condition
Seen working by RSW, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DE1585
Manufacturer
Mafac
Model
'Elongated' Palma 1620L
Year of Manufacture
2008
Serial
08.140.941
Condition
Seen working by RSW, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
1,300mm x 470mm x 400mm
Process Stages
Ultrasonic immersion Wash, Rinse, Dry
Other Info
Extended Basket Size to 1300mm
Location
Arriving in our warehouse soon
Weight (kgs)
2100
External Dimensions (WxDxH mm) [?]
2250 L x 2300 W x 2050 H
Delivery
Your delivery options

Description

Efficiency and precision for the highest demands. Whether handling high part volumes, complex geometries, or cleanliness requirements ranging from basic to high purity, the 2-bath Mafac Palma cleaning system ensures both pre-cleaning and final cleaning. With its optimised configuration and integrated ultrasonic, spray cleaning & drying, it consistently delivers the quality results.

The MAFAC PALMA is your reliable partner in mastering the versatile requirements of industrial parts cleaning. The well-proven dual wash tank system is compact, powerful, eco-friendly and can be used flexibly for a wide range of cleaning applications.

Globally Suitable for a Variety of Industries

PALMA cleaning systems provide for clean results after machining processes. Companies in the car industry and their suppliers, end users in the electronics industry and in machine shops benefit from the MAFAC PALMA's advantages as do electro-plating, hardening and coating shops. Bulk materials, single workpieces, as well as batches of stainless steel, mild steel, cast iron, non-ferrous metals or even plastics are cleaned reliably.

Wide Range of Cleaning Cycles

The dual wash tank technology, in combination with unique process technologies, offers a wide range of options for efficient pre- and post treatment processes. According to your specific demands, the two wash tanks can be used, for example, for washing and rinsing. By offering a rotating pulsed compressed air blast drying system or a stationary hot air drying system.

User Benefits

  • Patented rotating multi-side spray system with counter-rotating basket pickup system (can be switched off). With specifically arranged nozzles for reliable cleaning results.
  • Two large-capacity tanks for long life of the process water.
  • Cascade design of tanks for extended life of media.
  • Reduced energy consumption thanks to insulated tanks.
  • Separate heating of tanks.
  • Removable swarf filter trays for collecting coarse dirt particles in the return flow from the cleaning/rinsing process.
  • Coalescing oil separation system with integrated surface suction device in tank 1 and high-level monitoring of the oil collection tank.
  • Steam extraction with mist collector, return of condensation and condensate.
  • Hinged door with drip tray as a versatile load/unload platform. After the end of the cleaning process, automatic opening of the hinged door is possible.
  • Easy-to-use MAFAC MAVIATIC touch panel.
  • Ultra-fine filtration on pressure side of the pump for removing small dirt particles before cleaning/rinsing.
  • The hot air pulse blowing system keeps residual water to a minimum for a higher degree of dryness in the parts.
  • Hot air drying system for optimum heating and efficient drying of the parts

Standard Features

  • 2 tank flood/spray wash machine with hot air dry
  • Front loading with sliding plate door
  • Ultrasonic cleaning
  • Counter-rotating spray system and parts loading system
  • Spray cleaning and rinsing in one machine
  • Loading roller tracking
  • Bath heating system with temperature control and cut-off
  • Thermal insulation of tanks
  • Steam extraction
  • Detergent dosing
  • Fine filtration on both tanks
  • Media fill level control
  • Water contact components made of stainless steel / plastic
  • Easy-to-use MAFAC MAVIATIC touch panel

Specification

  • Load capacity - 100kg
  • Heating power - 65kW
  • Power  - 415V AC 50 Hz 68kVa
  • Maximum temperature - 75°C
  • Capacity - 1620 Litres

pdf icon Print / Download Mafac Palma Industrial Ultrasonic, Immersion & Spray Part Cleaning System Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
