Machines & equipment for sale

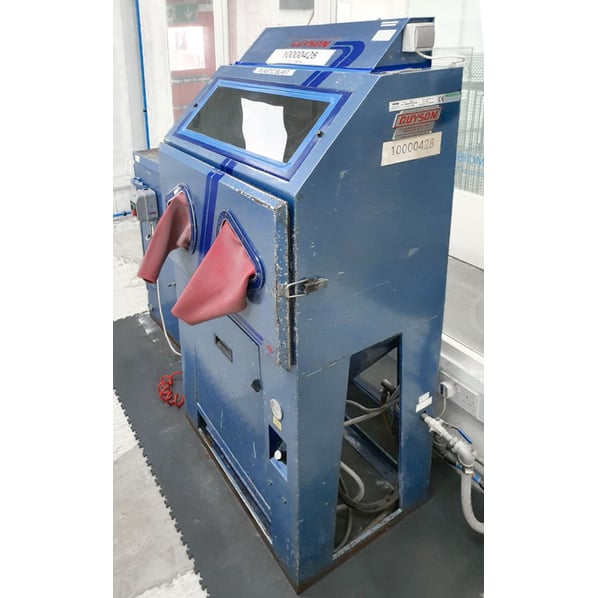

Guyson International Euroblast 4SF Shot Blast Cabinet and Dust Extractor.

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
SE1080
Manufacturer
Guyson International
Model
Euroblast 4SF
Year of Manufacture
2005
Serial
803351
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
600 x 650 x 1050mm
Work Handling Method
Manual
Other Info
Matched Dust Extractor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
125 kg
External Dimensions (WxDxH mm) [?]
820 x 800 x 1675mm
Delivery
Your delivery options

Description

A Second hand popular Guyson Model Euroblast 4 suction venturi feed blast cabinet which has a universal appeal for all those medium sized engineering blast and cleaning jobs

Typical uses of the suction feed system include:

Cleaning without dimensional change

  • Using dryblast techniques pioneered by Guyson, even complicated shapes and sensitive materials can be efficiently cleaned without substrate erosion or dimensional change. Ideal for the precision cleaning of moulds, dies and tools without damage to delicate surfaces.

Cosmetic finishing

  • Increasingly, cosmetic finishes can be the competitive edge that makes your product more attractive to the consumer. Whether you are addressing minor surface imperfections,

Deburring

  • Blast finishing can speedily remove lightly attached burrs from complex machined components and can be more effective than hand or machine deburring in areas with poor accessibility. Non-abrasive deburring media leave even fragile materials untouched.

Deflashing

  • Beadblasting can be used to rapidly and thoroughly deflash resin-moulded or die-cast components. Brittle flash can be cleanly removed from intricate components without altering adjacent surfaces by precise selective impact treatment.

Descaling

  • Use bead or grit blasting to quickly remove heat scale, surface discoloration, oxides, rust, weld scale or corrosion. Restore a component's looks and remove surface problems that interfere with painting, plating, coating, drawing and other processes.

Maintenance clean, re-manufacture, refurbish

  • Guyson blast cabinets are successfully used in maintenance workshops, repair shops, service centres, garages and military depots on a varied component mix. They can eliminate laborious hand work, chemical cleaning and environmental issues from the workshop, and they are ideal for automotive core re-manufacture operations and refurbishing cutting tools, TCT and diamond tipped routers, saw blades, drills etc.

Surface etching

  • Improved surface preparation or 'keying' of component surfaces can be achieved using Guyson blast equipment. Fine media blasting in one of our blast systems delivers very real improvements in adhesion for performance critical components such as medical implants when they are etched prior to ceramic or PVD/CVD coating.

Features include:

  • - Internal dimensions of 720 x 500 x 400mm.
  • - Front access door.
  • - Twin gauntlets.
  • - Air pressure regulator.
  • - Fixed gun holster.
  • - Front viewing window.
  • - Internal lighting.

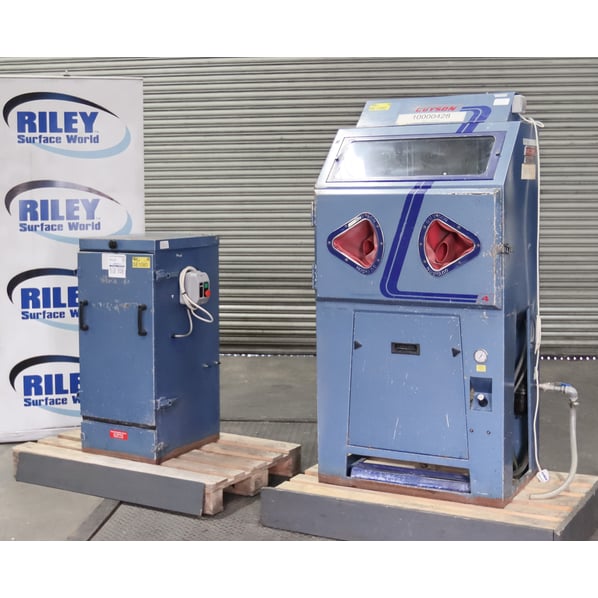

  • 4 Bag manual shaker dust extractor with ATEX explosion relief panel.


External dimensions  820 x 800 x 1675mm
Extractor                      600 x 650 x 1050mm

Machine Weight 125kg
Extractor Weight 60kg

pdf icon Print / Download Guyson International Euroblast 4SF Shot Blast Cabinet and Dust Extractor. Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
