Machines & equipment for sale

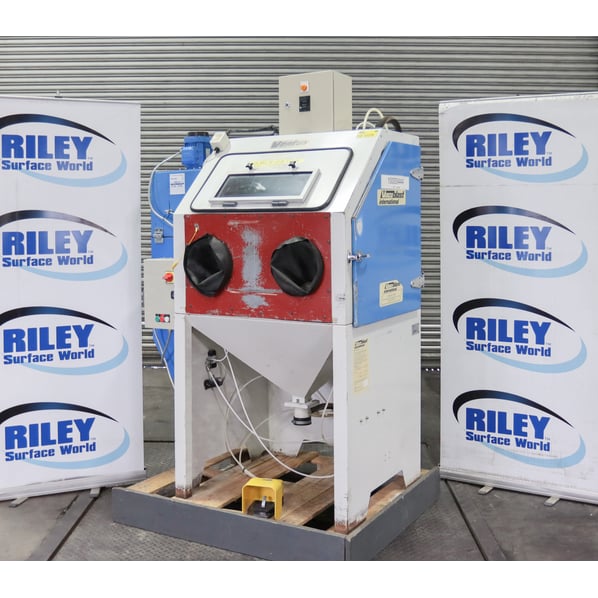

Vacublast (Wheelabrator) Ventus 92S Venturi Sucktion Shot Blast Machine

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
SE1079
Manufacturer
Vacublast (Wheelabrator)
Model
Ventus 92S
Year of Manufacture
12/1995
Serial
9510-11-00
Condition
From a working environment, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
850 x 640 x 700max.
Work Handling Method
Manual
Other Info
power 0.55kW
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1400 x 900 x 2050
Delivery
Your delivery options

Description

A top quality heavy duty suction venturi action shot blast cabinet complete with matched dust extraction unit.

  • This shot blasting equipment offers a faster alternative to labour intensive operations such as hand deburring, scraping and wire brushing, chemical cleaning, acid etching or dipping, liquid honing, knife trimming, sanding, grinding and many others.

Typical uses of the suction feed system include:

  • Cleaning without dimensional change.
  • Using dryblast techniques complicated shapes and sensitive materials can be efficiently cleaned without substrate erosion or dimensional change. Ideal for the precision cleaning of moulds, dies and tools without damage to delicate surfaces.

Cosmetic finishing

  • Increasingly, cosmetic finishes can be the competitive edge that makes your product more attractive to the consumer. Whether you are addressing minor surface imperfections,

Deburring

  • Blast finishing can speedily remove lightly attached burrs from complex machined components and can be more effective than hand or machine deburring in areas with poor accessibility. Non-abrasive deburring media leave even fragile materials untouched.

De-flashing

  • Beadblasting can be used to rapidly and thoroughly de-flash resin-moulded or die-cast components. Brittle flash can be cleanly removed from intricate components without altering adjacent surfaces by precise selective impact treatment.

Descaling

  • Use bead or grit blasting to quickly remove heat scale, surface discoloration, oxides, rust, weld scale or corrosion. Restore a component's looks and remove surface problems that interfere with painting, plating, coating, drawing and other processes.

Features includes:

  • - Air pressure blasting regulator and gauge.
  • - Right hand side opening doors allowing easy material handling and movement.
  • - Internal lighting.
  • - 2 x portal gloves.
  • - Foot pedal operation.

Dust Extractor

  • 0.55kW motor.
  • Single cartridge.
  • Pulse jet cleaning.

pdf icon Print / Download Vacublast (Wheelabrator) Ventus 92S Venturi Sucktion Shot Blast Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
