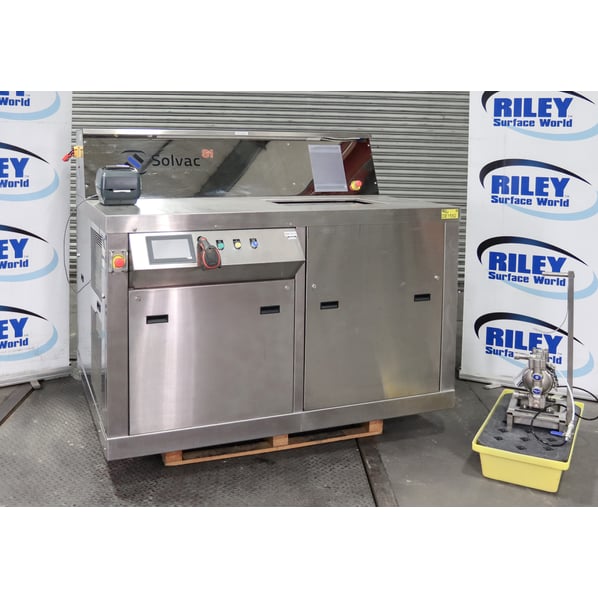

CC Hydrosonics Solvac S1 Ultrasonic Solvent Vapour Cleaning System

Stock No

DE1582

Manufacturer

CC Hydrosonics

Model

Solvac S1 1812

Year of Manufacture

c.2018

Serial

1151082018

Condition

Seen working by RSW, Excellent Condition, Current Model

Work Envelope (WxDxH mm) [?]

475 x 300 x 800 : Basket 375 x 240 x 200

Process Stages

Immerse, Ultrasonic, Vapour, rinse, Dry

Other Info

97L Solvent : Hermetically Sealed lid

Location

Our Central Warehouse, Aldridge, UK

External Dimensions (WxDxH mm) [?]

1750 x 1560 x 1500mm

Delivery

Your delivery options

Description

Make light work of cleaning your heavily contaminated parts, using this combination of ultrasonic cleaning and solvent degreasing washing system. Features a hermetically sealed lid, ensuring the highest levels of safety for the operators and the environment.

The Solvac™ S1-1812 ultrasonic vapour degreaser is designed and tested for use with non-flammable, EPA approved solvents which is 3M Novec 73DE. A solvent with excellent cleaning and drying properties. The vaporisation & condensation of the solvent driving for more modern solvent cleaning systems, this process (known as distillation) ensures that the dirtiest solvent is concentrated in the vapor generator where parts never go.

The condensed distillate gravity drains into the rinse sump, which cascades into the vapours generator. As parts are lowered into the cleaner, solvent condenses onto the parts, rinsing them. Ultrasonics create vapors bubbles in the liquid which generate high pressure jets of solvent when they implode, and it is this action which helps removes particulates at a submicron level.

A final rinse takes place in solvent vapors as the parts are removed from the process tank. Solvent remaining on the parts volatizes and drops back into the tank when moved into the freeboard zone; located just above the vapor zone.

Typical Applications

• Aerospace
• Automotive industry
• Surface treatment industries
• Trade coating
• General manufacturing

General Features

• Touch screen monitor.
• Automated hermetic sealed tank lid.
• 10" filter housing with pressure gauge.
• Freeboard water separator.
• Primary water separator.
• Recirculation pump.
• Wye-strainer.
• High vapour thermostat.
• Wash tank clean out door.
• Boil sump heater.
• Boil tank clean out door.

Additional Features

• Solvent immersion tank with a range of ultrasonic frequency options
• Offset distillation
• Built-in refrigeration
• 100% freeboard ratio to limit solvent consumption
• Solvent replacement warning
• Gravity water separator
• PLC controlled
• Pneumatic sealed compression lid
• Stainless steel condenser to avoid corrosion
• Stainless steel process tank
• Filtered recirculation with sub-micron capability
• Two ultrasonic power generators 500MW each
• Scanner and printer
• 5 pin plug fitted

CC Hydrosonics Support

This machine is available with an installation, service and maintenance programme, CC Hydrosonics are familiar with this machine and are happy to provide quotations for commissioning and servicing.

Based in Essex, CC Hydrosonics are ultrasonics and cleaning specialists covering the UK for many different industries and are well placed to provide ongoing care and maintenance of this machine. Part of the Crest Ultrasonics Group they have been manufacturing innovative aqueous and solvent based ultrasonic cleaning equipment for over 50 years.

Print / Download CC Hydrosonics Solvac S1 Ultrasonic Solvent Vapour Cleaning System Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
