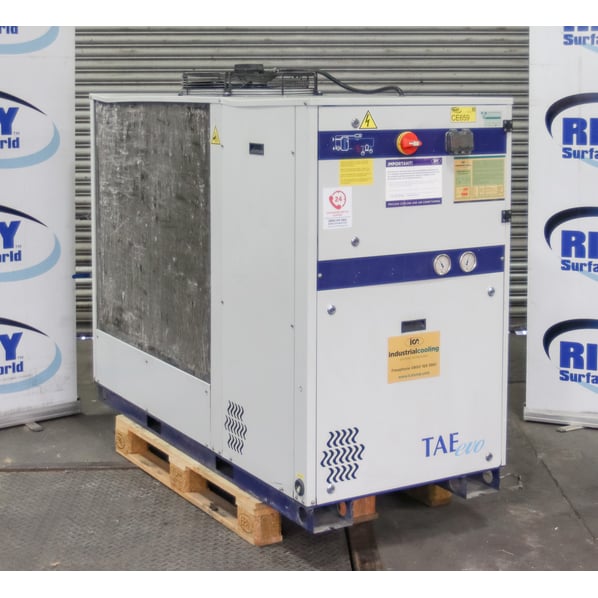

Total Process Cooling (TPC) TAE EVO 081 Packaged Air Cooled Refrigerated Process Water Chiller

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
CE659
Manufacturer
Total Process Cooling (TPC)
Model
TAE EVO 081
Year of Manufacture
2013
Serial
2200222267
Condition
From a working environment, Good Condition, Current Model
Ave. cooling capacity
28.4 kW @ 15°C
Ave. Water Flow Rate
4.9/9.6 with 2.5/1.3 bar
Other Info
Refrigerant R407c
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
336
External Dimensions (WxDxH mm) [?]
800 x 2000 x 1500
Delivery
Your delivery options

Description

The ICS TAE EVO 081 is a 28.4kW chiller which contains a 140 litre buffer tank and a circulation pump, which draws from the tank to supply the incumbent cooling system. The chiller cycles off when the set outlet temperature in the evaporator has been achieved.Air cooled packaged all in 1 system.

This fully packaged chiller contains a single Maneurop fully hermetic compressor with optional non-ferrous food safe cooling circuit.

There is also an integral 140 litre thermal buffer tank and standard 2.5 (approx) bar circulation pump. With quick-release water and power connections, this chiller has been designed for a fast installation and start up.

The chiller can be supplied with an atmospheric or pressured set-up and can manage a wide range of temperature requirements (+20°C to –0°C).

This lightweight has been built to manage small tool cooling and process applications. This chiller can be run in parallel with other chillers in our range and has been designed to connect to AHU’s.

Technical Specifications

  • Dimensions (WxDxH) - 760mm x 1860mm x 1450mm
  • Weight - 474kg
  • Water connections - 1 1/2” Female BSP
  • Max/Min water flow - (m3/h) 4.9/9.6 with 2.5/1.3 bar
  • Running current - 19 Amps
  • Power supply - 400(±10%)/3/50
  • Max power absorbed - 6.3kW
  • Power sound level (dB(A)) - 53.6 @ 10m
  • Nominal cooling duty - 28.4kW @ 15°C

pdf icon Print / Download Total Process Cooling (TPC) TAE EVO 081 Packaged Air Cooled Refrigerated Process Water Chiller Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
