Balco Engineering Ltd Horizontal Fume Scrubber

Direct From Site Clearance

Direct Site Clearance Price [?]: £ Login or Register for price
Part of a Direct Site Clearance: Horizontal Fume Scrubber - Available Now
Condition: Seen working by RSW, Excellent Condition
Location: Birmingham, UK

Buy Now Add to Quote Book Appointment

Stock No: SSE400
Manufacturer: Balco Engineering Ltd
Model: Horizontal Fume Scrubber
Year of Manufacture: 2023
Serial: ICEL2023
Condition: Seen working by RSW, Excellent Condition
Approx Duty CFM / M³/Hr: 18,000 / 30,564m
Other Info: Centrifugal Fan 18.5 kW (940 rmp @ 82 Db
Location: Birmingham, UK
External Dimensions (WxDxH mm) [?]: 7000 x 3000 x 4000
Delivery

Description

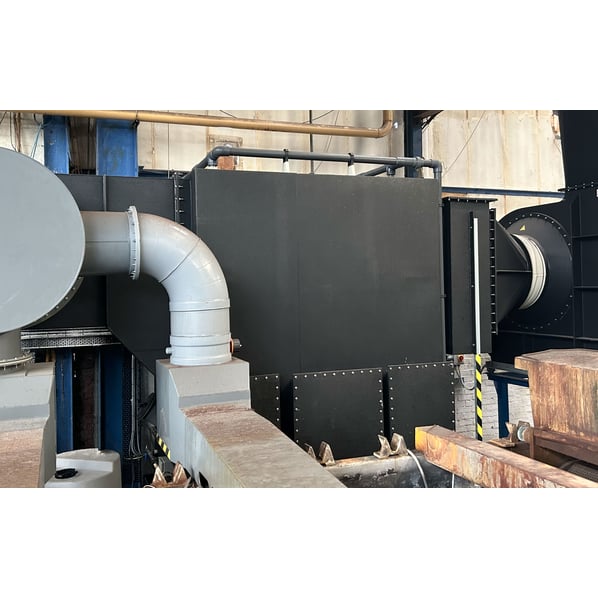

Made from PVC chemical resistant material, this Horizontal Fume Scrubber can handle all types of fumes, vapours, odours and particulates associated with fume producing processes. Designed to treat sulphur dioxide fumes from a multi-process chemical treatment line, keep your process under control with this 18,000 CFM system/30,564m³ per hour scrubber.

Suitable Applications

Scrubbers can perform the removal of acidic, alkaline, soluble organic gasses, vapours, and odours from a gas stream. The horizontal technology scrubbing covers the widest range of vapour and gas scrubbing.

Applications

Metal pickling lines
Chemical cleaning/milling lines
Acid etching lines
Acid/Chemical bulk storage
Solvent bulk storage
Metal finishing lines
Metal plating lines
Chemical mixing operations
Chemical processing equipment
Food processing
Pharmaceutical blending
Pharmaceutical production

Features Specification

18,000 CFM system/30,564m3 per hour at 4” water gauge
Scrubber unit approx. 2200 x 2200 x 4000mm tall
Centrifugal fan - 18.5 kW (940 rmp @ 82 Db) direct drive
Mild steel painted fan support frame
Recirculating pump
Stack - Ø1100mm
Scrubber Inlet - Ø950mm
Drip/Bund tray - 3000mm x 2500mm x 500mm approx.
Central pal ring packing media section - approx. 500mm thick
Inlet spray manifold PVC/ analogue pressure gauge
Outlet spray manifold PVC
4 Anti vibration mounts and flexible inlet connection with 2 clip bands for fan
Polypropylene stack in flanged section with strengthening flange square to round transformation section to match fan outlet to terminate approximately 2m out of roof.
4kW PTFE coated heater
Thermostat
