Rosler R 180/530 Vibratory Finishing Sub Cells - 3 Cells of 3 Available

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Tecomet Medical Industry Vibratory & Electropolishing Finishing Lines
Condition
Seen working by RSW, Good Condition, Current Model
Location
Sheffield, UK
Add to Quote Book Appointment
Stock No
TEC475
Manufacturer
Rosler
Model
R 180/530 Vibratory Finishing Sub Cells
Year of Manufacture
2016
Serial
Various
Condition
Seen working by RSW, Good Condition, Current Model
Capacity
10 Litres/ trough, 30 per cell, 90 Total
Type
Course Finish, Fine Finish and Polish
Other Info
11kW, 400V 50 Hz
Location
Sheffield, UK
External Dimensions (WxDxH mm) [?]
Inner Drum 500mm
Delivery
Your delivery options

Description

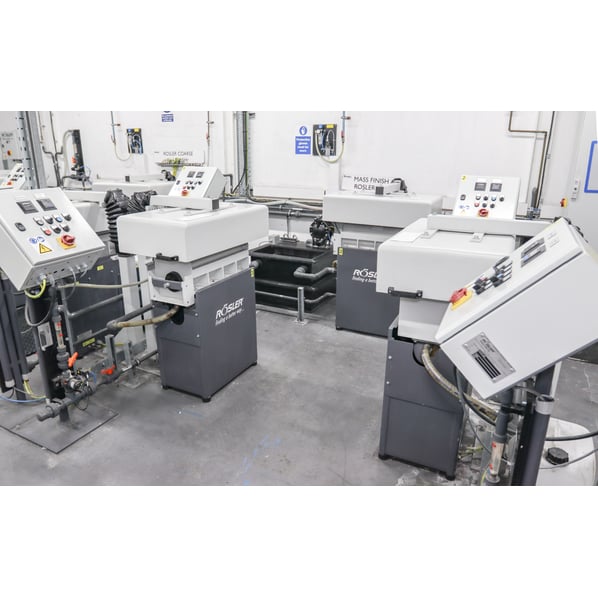

3x Rosler R180/530 vibratory finishing sub-cells currently used for medical implant finishing, suitable for many types of small part finishing to a high standard.

Each of the three sub-cells contains

  • 3x  Rosler R180/530 Trough Vibratory Rumblers
  • Waste water transfer lifting station Type H150 P9 with solution level activated transfer pumps.
  • On average, only 3,800 running hours logged.
  • Each sub cell is currently arranged to provide course finishing, fine finishing and polishing to medical implant standards
  • Trough Linings inspected by Riley Engineer - Found to be in excellent condition.
  • Variable speed and adjustable vibration provided by Vibroscope feature

These 3 sub-cells are part of an Orthopedic Finishing Cell listed for sale as one complete purchase. It can be split into these sub-cells if preferred. Process water and circulation water tank Type PK700/700 with metering and dosing pumps.

£ Make a reasonable offer to purchase a sub-cell today.

These 3 Rosler R180/530 vibratory finishing sub-cells featuring a total of 9 vibratory foot motor trough units (3-sub cells with 3 units each). The direct drive foot mounted system generates powerful vibratory force at relatively low energy costs and allows for a compact cell design. Finish a wide variety of small workpieces produced in small batches or longer units up to 500mm in length.

Principles of Vibratory Finishing

  • Vibratory surface finishing takes place in a work bowl or trough placed on coil springs. The vibratory energy is induced by a special vibratory motor that is mounted on the bowl or trough. The vibration creates the typical relative movement of media against parts.
  • Vibratory finishing can be used for all metals, many plastics, ceramics, rubber, wood, stone and glass and can help to achieve a wide range of objectives.
  • The continuous feeding of water and compound, such as soap, supports the finishing process.
  • Excellent results can be obtained for highly delicate and small components as well as for larger mass made and robust components.

Typical Applications Include:

  • General deburring.
  • Heavy duty radiusing (edge breaking).
  • Surface smoothing.
  • Polishing.
  • De-greasing.
  • Surface cleaning.
  • Pickling, descaling, de-rusting.
  • Keramo Finishing (please see document attached)

Specification

  • Siemens Simatic HMI Touch controller.
  • Media filtering system.
  • Acoustic covers.
  • Multiple Tanks.
  • Multiple pumps.
  • Dosing Units. (3 off D1-2/100-So units and 6 off D1-K/100-So)
  • Capacity = 10 Litres per trough, 30 Litres per cell, 90 Litres in Total.

Control unit with speed control

  • Process timer
  • Treatment Timer
  • Dosing control

Also available for Waste Water Treatment is a Rosler Z1000 Turbo Centrifuge TEC450

pdf icon Print / Download Rosler R 180/530 Vibratory Finishing Sub Cells - 3 Cells of 3 Available Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
