Machines & equipment for sale

Rosler Rotary Table Semi Auto Blast Cabinet With Full Recovery

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
Arriving in stock soon, available for purchase now.
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
SE1066
Manufacturer
Rosler
Model
ST 1400 PS
Year of Manufacture
2008
Serial
44818/08
Condition
From a working environment, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
Table 900 Ø x 400
Work Handling Method
Semi Automatic rotary table.
Location
Arriving in our warehouse soon
External Dimensions (WxDxH mm) [?]
1860x 1450 x 1800
Delivery
Your delivery options

Description

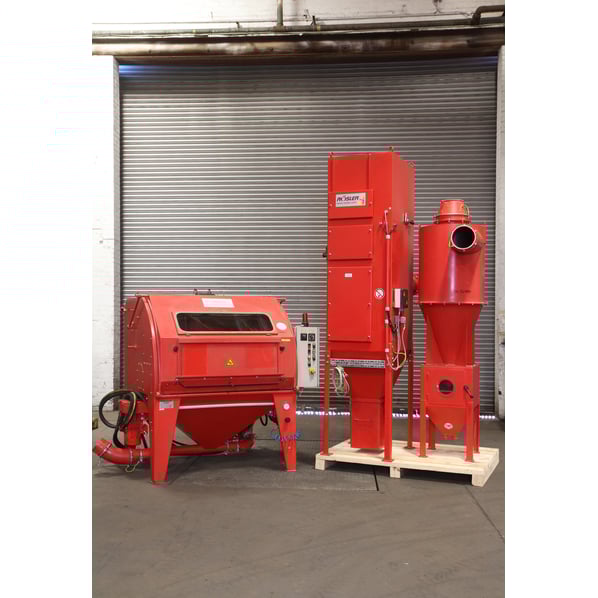

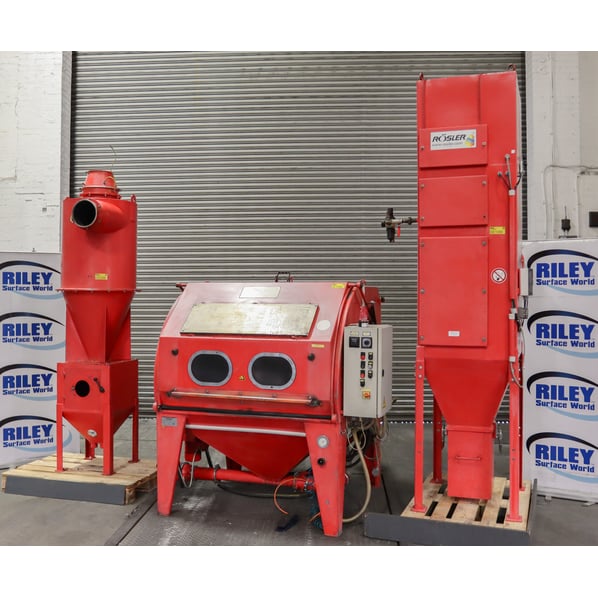

This second hand Rosler ST 1400 blast cabinet configured for the automatic processing of multiple jigged components, however can accommodate bulky, large or heavy components. Constructed from 3mm steel, the cabinet is equipped with motorised rotating table upon which fixtures or jigs can be mounted to make this a semi automatic blasting machine.

The components to be blasted are simply placed onto the table which is then rotated automatically by the externally mounted drive motor.

The ST1400 can be used with a wide range of blast media from the more commonly used abrasive types such as Garnet and aluminium oxide, through to walnut shell for polishing or plastic for cleaning and deflashing.

At the base of the machine is a vibratory media sieve that will separate any oversized particles exiting the work chamber that may have been introduced into the system before returning the clean media to guns via the cyclone recovery system.

This fully integrated system is serviced by the Rosler RF20-L dust extractor

Features Include:

  • Internal cabinet dimension of Ø900mm driven table with a maximum product height of 400 mm
  • Quick parts load to Jigged fixtures, which can be easily removed or modified to suit individual applications
  • Full width front opening door provides clear access to the complete blast chamber and the special design prevents blast media spillage when opened.
  • Components are easily and conveniently loaded to jigs or manually or by hoist or stacker truck direct to table if required (minor modification) if required
  • Large inspection window specially positioned to prevent dust deposits forming
  • Integrated high performance cartridge dust collector
  • Ø900mm powered rotary table with variable speed drive.
  • Seals fitted outside the blasting chamber
  • 4 x Injection venturi guns fitted
  • Coarse particle vibratory sieve
  • Compact design.
  • Well proven, reliable and efficient.
  • External roof mounted halogen lighting unit providing full cabinet illumination.
  • Design eliminates blast media deposits within the blasting chamber for manual or semi-automatic operation.

pdf icon Print / Download Rosler Rotary Table Semi Auto Blast Cabinet With Full Recovery Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
