Marr Electric Oven with Extraction and Fenner Drive Rotation Unit

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
Arriving in stock soon, available for purchase now.
Condition
Good Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
OE2615
Manufacturer
Marr
Model
Box Batch Oven
Serial
12946
Condition
Good Condition, Seen powered at RSW
Internal Size (WxDxH mm) [?]
1470 x 1480 x 1880
Max Temp
300°C
Location
Arriving in our warehouse soon
External Dimensions (WxDxH mm) [?]
2290 x 1750 x 2950
Delivery
Your delivery options

Description

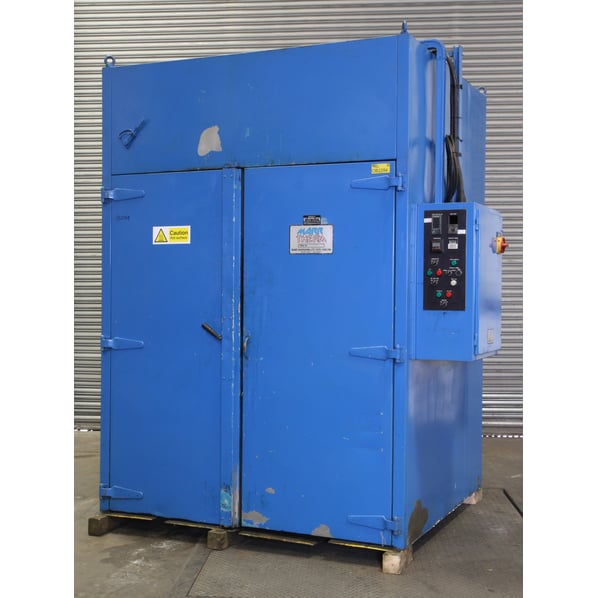

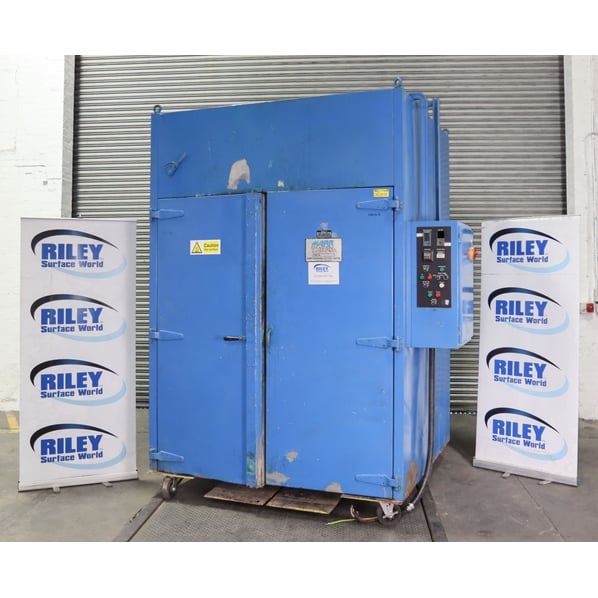

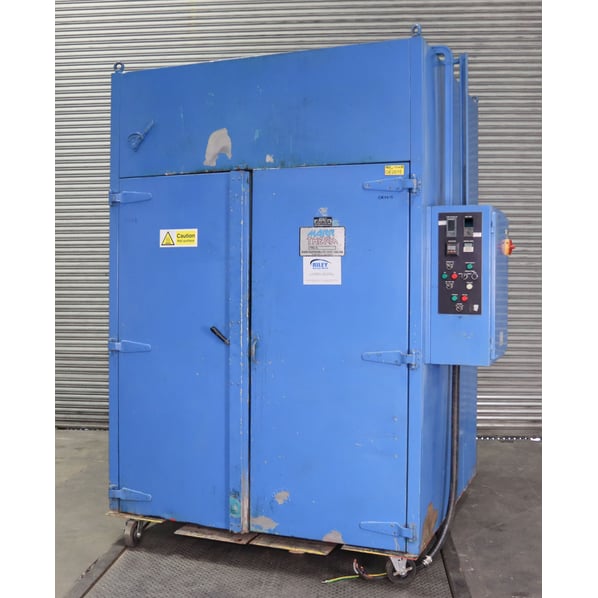

A typical example of a heavy duty industrial process oven from Marr with a wide range of curing and treatments applications with its 300°C air circulated temperature range.

Typical Applications

  • Curing water and solvent based paints, varnishes and inks
  • Curing resins, rubbers and composites
  • Processing plastics, curing PTFE
  • Stress relieving
  • Electroplating de embrittlement
  • Bonding
  • Thermal testing etc

Features Include:

  • Plated floor, with cut outs for rails suitable for a trolley or the rotation unit seen.
  • Fenner drive rotation unit (external motor drive to enable part rotation within the oven whilst under heat).
  • Twin hinged access doors.
  • Vented powered extraction with manual adjustable vent control.
  • Solid state heater control.
  • Explosion relief panels to rear for the use with volatile atmospheres.
  • Right hand control panel including Eurotherm 3508 controller, overtemp controller, Omron H3CA process timer and Muller timeswitch.
  • Internal dimensions (WxDxH) - 1470mm x 1480mm x 1880mm
  • External dimensions (WxDxH) - 2290mm x 1750mm x 2950mm
  • Ducting diameter - Ø220mm
  • Power 63kW.
  • Max temperature achieved during trial 300°C.

Fenner Rotator Unit

  • Type 863A4628J
  • S/no 256294
  • 1.5kW
  • 4.5-26 Rev/Min
  • Aux Motor gearbox info: Ratio 74.47

pdf icon Print / Download Marr Electric Oven with Extraction and Fenner Drive Rotation Unit Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
