Climavent UB 09075 Down Draft Bench

Stock No
EE2197
Manufacturer
Climavent
Model
UB 09075
Serial
PDI 1816
Condition
From a working environment, Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
To Suit Extractor
Filter Area ft² / m²
Downdraught bench, no extraction Inc.
Other Info
Working Area 890 x 740 x 800mm
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1000 x 850 x 2200mm
Delivery
Your delivery options

Description

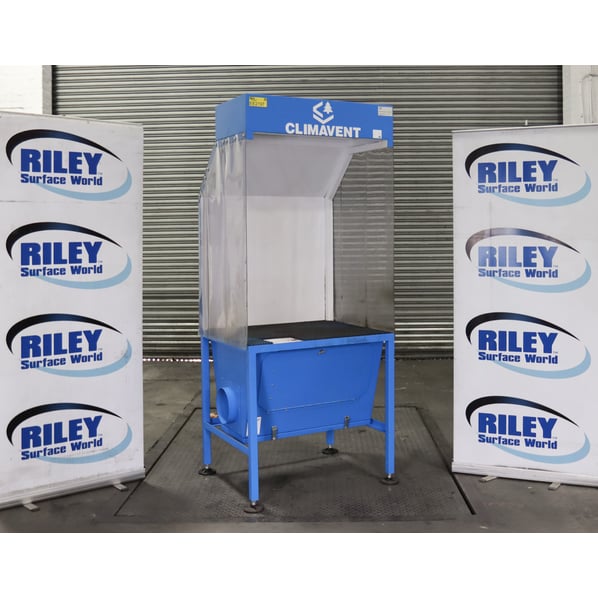

Climavent / Lakestyle down draft fettling booth with plastic curtains to sides and steel grille. Internal lighting and Ø200mm extraction ducting outlet to the left hand side.

The fan-less downdraft tables are designed to provide efficient capture of dusts, fumes, and gas/vapours generated from a variety of manufacturing operations and processes such as:

  • Buffing
  • Grinding
  • Sanding
  • Cutting
  • Polishing
  • Glueing
  • Bonding
  • Mixing
  • Certain welding applications

The industrial grade downdraft tables address the indoor air quality issues in the workplace by:

  • Reducing the risk of operator exposure to harmful substances.
  • The capture of metal dust from deburring/grinding; welding smoke capture; fume and vapour reduction.
  • Drawing polluted air away from operator breathing zones.
  • Flexible to accommodate various sizes and types of production equipment.
  • Increasing employee and operator safety and comfort levels.
  • Operating at a comfortable noise level.
  • Outlet at the left hand side with Ø200mm ducting for ease of connection to a suitable extractor.

Features

  • Internal lighting
  • Enclosed work area - 890 x 740 x 800mm
  • Height from floor - 880mm
  • Plastic curtains to each side

UB Series Down Draught Benches for Hazardous Dust

Climavent's UB Series Down Draught Benches are designed for hazardous dust applications including fettling and grinding stainless steel, carbon steel, titanium, aluminium and cast iron. To protect the workers, and the workplace itself, from the risk of explosive dust and sparks, the benches can be supplied alongside the LW series wet collectors. The setup is an ideal solution for the explosive nature associated with certain hazardous dust applications.

pdf icon Print / Download Climavent UB 09075 Down Draft Bench Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
