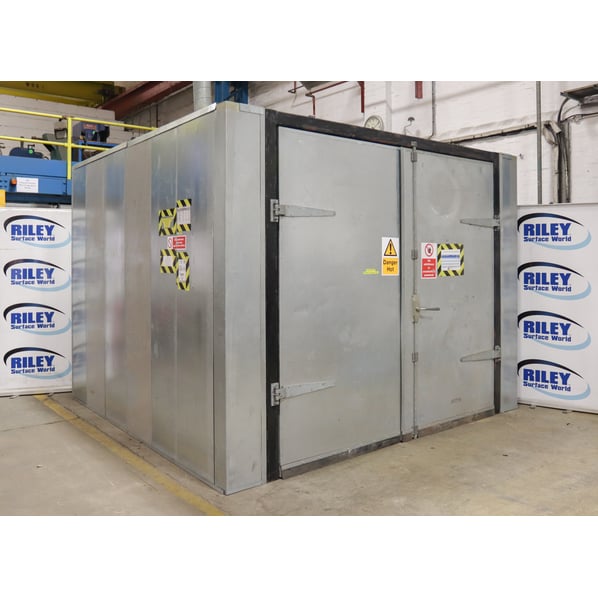

RDM Engineering Gas Fired Multi-Purpose Air Circulated Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
OD2538
Manufacturer
RDM Engineering
Model
Demountable large Industrial Gas Oven
Year of Manufacture
2009
Condition
Good Condition, Seen powered at RSW
Internal Size (WxDxH mm) [?]
3120 x 2500 x 2400 Door is 2470 x 2400
Max Temp
300°C
Other Info
2 Off explosion panels
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
Fully demountable into panels
External Dimensions (WxDxH mm) [?]
3330 x 3700 x 3100
Delivery
Your delivery options

Description

Forced air convection gas fired box oven, previously used for organic coatings stove and the heat treatment of aluminium components.

Description

  • Oven type: Forced air convection.
  • Oven atmosphere: Re-circulating air.
  • Doors: The front of the structure only would be fitted with one pair of fully insulated swing doors, nominally 1235mm x 2400mm each.
  • Fan, rear mounted and driven by a 4.0kW motor.
  • Air flow: Vertically through work chamber.
  • Panel wiring: All electrical equipment within the panel is fully wired to marked terminals.
  • Oven wiring: All electrical equipment on oven structure is wired complete to the control panel.
  • Foundations: A firm and level floor is required.

Gas Burner BTG 11 50-60HZ 48.8 - 99kW

  • Gas train complete with operation and safety valve, minimum pressure switch, pressure regulator and gas filter.
  • Equipped with air closure device.
  • Valve tightness control not required by EN676.
  • Gas train with Valve Tightness Control.
  • Minimum gas train inlet pressure needed to obtain maximum burner power with a combustion chamber backpressure of zero.
  • Maximum gas inlet pressure at pressure regulator in CE version, at gas train for EXP version
  • Net calorific value at reference conditions of 0°C, 1013mbar:
  • Natural gas HI 35,8MJ/m3 = 8550 kc.

Control Panel

  • Omron H2C timer.
  • Pola HP56 HP56a - PID thermostat with 3 set points & programmable input.
  • Safety contactor one mains isolator.
  • Stop/Start

Construction

  • Framework: Rolled steel sectional material.
  • Outer case: mild steel plate.
  • Inner Case:  mild steel plate.

Technical Data

  • Maximum temperature: 300°C
  • Normal operating range: 150-300°C
  • Working chamber dimensions: 3120mm x 2500mm x 2400mm
  • Control zones: 1
  • Power supply: 415 Volt, 3 phase, 50Hz 4 Wire



Former Standard Aerospace

This plant is one of several machines acquired during Standard Aerospace's reorganisation of one of their manufacturing facilities in the UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture of aircraft components,
but can provide a benefit to any industry.#



PLEASE NOTE THIS OVEN HAS NOW BEEN FLAT PACKED READY FOR DESPATCH

pdf icon Print / Download RDM Engineering Gas Fired Multi-Purpose Air Circulated Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
