Sonikem Small DI System

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
Available subject to build time
Condition
Brand New
Buy Now Add to Quote Contact Us

Finance available for variable duration and just the VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No
TD356
Model
PW2 (Capacity: 200 litres)
Year of Manufacture
2025
Condition
Brand New
Process Stages
2
Other Info
Flow Rate;200-650lph(max.)
Delivery
Your delivery options

Description

Sonikem Small DI System

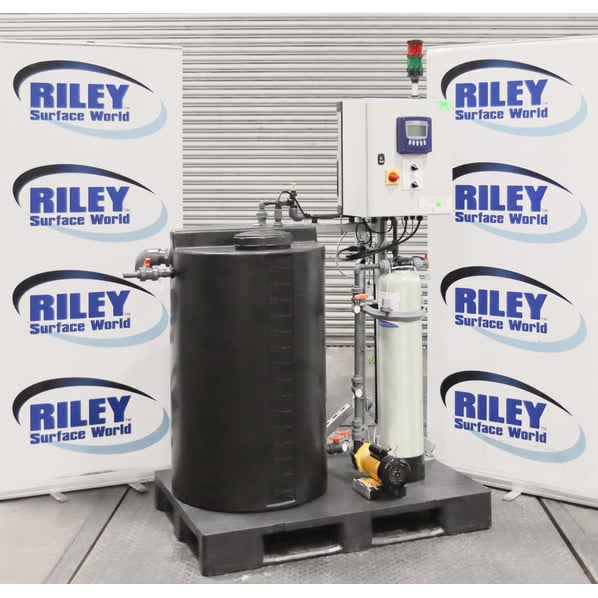

A Mixed-bed deionising and ultraviolet sterilisation plant manufactured by Sonikem,  has multiple applications in water treatment systems and industrial processes where water quality is a key component.

The plant consists of a mixed bed deionising cylinder containing a mixed bed resin and controlled by a LTE Electronics BXD 17 panel mounted controller.

Complimenting the plant is a 300 litre polypropylene tank with level control and an Aquada 2 ultraviolet disinfection unit.

The unit consists of the following major components

Mixed Bed Deionising Cylinder.

Supplied by Allwater technologies Ltd, it consists of a single DI cylinder containing 15 litres of mixed deionising media.

Specification:

  • Dimensions: 7” diameter x 35” high
  • Resin:15 litres of mixed deionising media
  • Connections: ¾”BSBT
  • Flow Rate: 200 – 650 Lph (max)

LTE Electronics BXD 17 Controller

The BXD17 is a microprocessor-controlled instrument range offering individual controllers for the measurement of contact conductivity. To achieve this, the instrument utilises a clear multifunction LCD to display the primary and operational status readings, whilst also to providing an intuitive user interface.

 Process Tank

A 300 litre black polypropylene storage tank, complete with[

  • Level controls
  • Markings  indicating volume measurements in 100 litre graduations on the side of the tank
  • Multiple ¾” BSPT inlet and outlet pipes and a 2”BSPT overflow pipe.
  • Mounted on a moulded pallet for ease of transport and installation.

Water circulation pump

A Pan World NH-200PS-Z sealess magnetic pump, specifically designed for handling chemicals and other fluids

Featuring a Polypropylene pump body and integrated AC motor, it offers a maximum head of 12.5 meters and a maximum flow rate of approximately 35 to 40 L/min.

The NH-200PS-Z is designed for applications that require leakage-free operation and corrosion resistance

Key Features & Specifications

  • Type: Magnetic drive, sealless centrifugal pump.
  • Manufacturer: Pan World
  • Material: Polypropylene.
  • Drive: Integrated AC motor.
  • Max Head: ~12.5 m.
  • Max Flow: ~35-40 L/min.
  • Connections: Available with hose, threaded, union, or flanged connections.
  • Motor: Can be powered by single-phase or three-phase motors.

AQUADA 2 ULTRAVIOLET WATER DISINTFECTION UNIT

The process water undergoes further treatment through an in-line ultraviolet disinfection system

This is used to ensure that any micro organisms that exist naturally in water are treated and removed

Specification: Aquada 2

  • Power: 55 watts
  • Dimensions: 470mm x 95 x 70
  • Pipe connection@ ¾”BSPT
  • Flow Rate: 38Ltr/min
  • Voltage: 230VAC 50/60Hz





pdf icon Print / Download Sonikem Small DI System Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
