Machines & equipment for sale

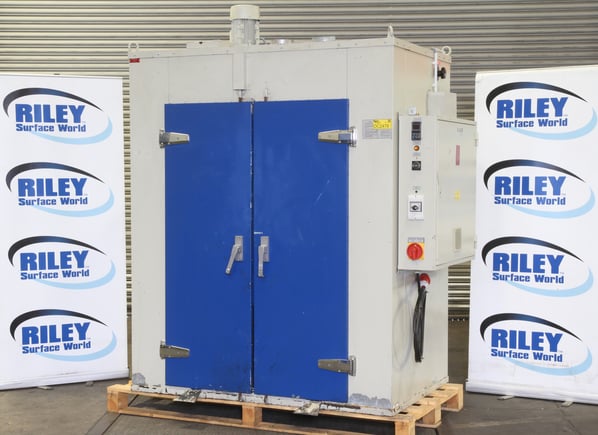

Trus 160KT Electric Air Circulated Close Tolerance Box Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
OC2478
Manufacturer
Trus
Model
160 KT
Year of Manufacture
2011
Serial
SP 201 106 11706
Condition
Excellent Condition
Internal Size (WxDxH mm) [?]
1090 x 900 x 1590
Max Temp
160°C // 20.6kW
Other Info
Solid State Relays
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
634
External Dimensions (WxDxH mm) [?]
1870 x 1110 x 2300
Delivery
Your delivery options

Description

A pre-owned Trus 160°C electric drying/warming oven which is suitable for almost any application from simple drying processes to exacting heat treatments.

The Trus standard drum warming/drying oven is an electric, forced air Batch Oven that is suitable for almost any application from simple drying processes to exacting heat treatments and all types of production work including heavy work loads.

This oven is designed to accommodate a loading trolley with rails fitted into the floor and small ramps to the front of each rail. It can also be used for multiple processes, such as varnish baking, paint stoving, rubber curing, resin bonding and mould heating processes where the temperature requirements is below 160°C.

General Oven Specifications:

  • Originally designed for drying and fixing of flocked and digital-printed textiles and other flat materials.
  • Digital temperature controller, PMA Industrieregler KS 50 1.
  • Analogue cycle timer.
  • Single air recirculation fan for even temperature uniformity.
  • Air flap with manual control knob.
  • Front loading swing aside doors.
  • Usable internal dimension of 1090 x 900 x 1590mm.
  • 19.5 kW Heater loading.
  • External dimensions of 1870 x 1110 x 2300 mm.
  • Mains Voltage 3 phase 415 volts 50Hz.
  • Overtemperature Thermostat
  • Grille, area 600mm x 900mm
  • 25 hurdles, distance between each hurdle 50mm



pdf icon Print / Download Trus 160KT Electric Air Circulated Close Tolerance Box Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
