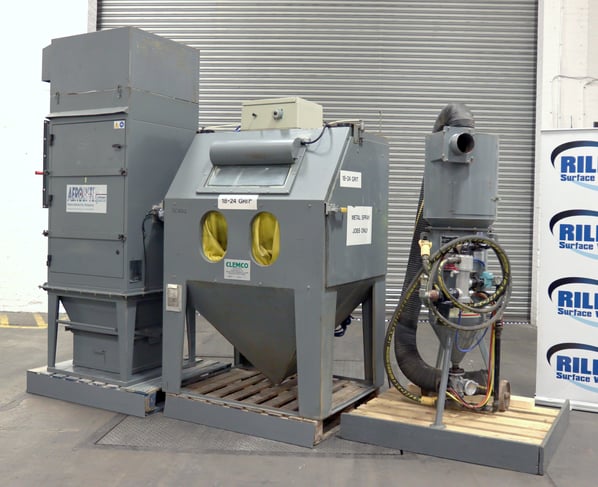

Hodge Clemco IND 1200 Heavy Duty Pressure Fed Complete Shot Blast System

Stock No
SC1002
Manufacturer
Hodge Clemco
Model
IND1200A
Year of Manufacture
1997
Serial
94 2439j
Condition
From a working environment, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
1200 x 900 x 900
Work Handling Method
Manual with Rotary Table
Other Info
Continuous Cleaned Media Flow
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
280+480+122
External Dimensions (WxDxH mm) [?]
1320 x 1050 x 2050
Delivery
Your delivery options

Description

Pressure feed hand blast cabinets are essential when removing heavy corrosion, tough coatings or when high production rates are required. Cleaning rates are up to 5 times faster than a suction cabinet and are suitable for use with heavier, long-life abrasives such as iron and steel.

Pressure feed machines are commonly used in high production environments or on applications such as the cleaning and descaling heavy castings.

The original application was designed to clean the mill scale from both the internal and external diameters of large diameter tube, and clean the threads of oil pipe, and drill tubes.

Feature Include:

  • Manual and auto operation.
  • Double door access.
  • Large work chamber area.
  • High visibility chamber with large viewing window.
  • Glove aperture carefully designed to accommodate users of different heights and facilitate easy and safe component handling.
  • Manual door isolation with interlock.
  • Turntable.
  • Pneumatic foot pedal control for instant operation in manual mode.
  • Vacuum recovery unit to minimise blockages in the machine.
  • Pressure regulator for fine control of air pressure.
  • Abrasive grit valves for accurate adjustment of media feed rate.
  • Safety door interlock system which interrupts blasting operation in the event of any of the doors being opened.
  • 15e Auto M, Shaker type high capacity extraction unit to aid visibility and cleanliness inside the blast cabinet.
  • Heavy duty internal rubber curtains.
  • Cyclone model 1446 HcP5.

Dust Extraction Unit

  • 15m² filter area.
  • Clean air side maintenance to make bag changing and servicing a healthier task, magnehelic pressure gauge.
  • Pre-wired fan and shaker motors to speed installation.
  • Efficient top mounted shaker ensures quick efficient cleaning and maximum bag life.
  • Explosion relief panel.

Suitable Materials Processing:

Metals

  • Removal of corrosion, mill scale and coatings
  • Deburring
  • Peening
  • Surface preparation
  • Cosmetic surface finishing
  • Brazing flux removal

Plastics

  • Composites
  • Rubber
  • Deflashing of mouldings
  • Texturing of plastic surfaces
  • Coating removal
  • Mould cleaning
  • Surface etching for material bonding

pdf icon Print / Download Hodge Clemco IND 1200 Heavy Duty Pressure Fed Complete Shot Blast System Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
