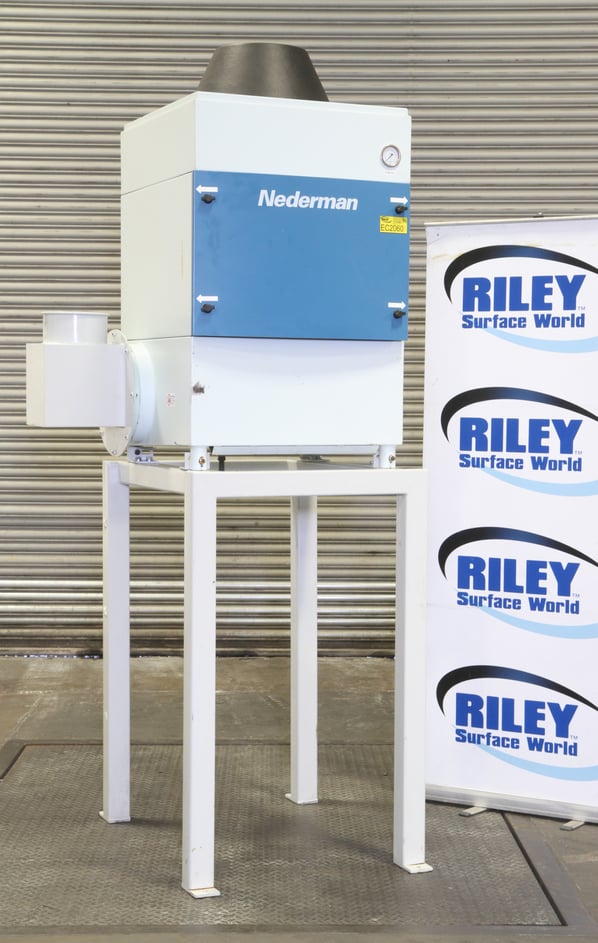

Nederman Oil Mist and Particulate NOM 11 Self Contained Flexible Extractor
- Stock No
- EC2060
- Manufacturer
- Nederman
- Model
- NOM 11 HEPA
- Year of Manufacture
- 2014
- Serial
- 14222-00/ID041220JB1
- Condition
- From a working environment, Excellent Condition, Current Model
- Approx Duty CFM / M³/Hr
- 647//1100
- Filter Area ft² / m²
- 91.5ft 2// 8.5M2 : HEPA =172ft2 //16M2
- Other Info
- Max air flow 1100M3/Hr : 0.75kW
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 198
- External Dimensions (WxDxH mm) [?]
- 1095 x 1080 x 2550 on stand
- Delivery Your delivery options
Description
An oil mist filter system designed for use wherever there is a need to filter out oil mists from the atmosphere. Use in production environments next to production machines such as lathes, milling machines, industrial washing processes, stamping or pressing operations.
Connect via ducting to the machine to filter out the oil mist, returning the collected oil to the production machine or a suitable collection container.
Equipped with pressure gauges for control of the filters as well as to indicate the need for cleaning (self draining)
- Suitable for emulsion mist.
- 415 Volt.
- Filter area = 91.5ft² // 8.5M².
- HEPA filter area =172ft² //16M².
- Mounted on a stand.
- Low maintenance costs.
- Easy to install.
- High filtration efficiency.
- Small footprint.
- Self draining.
- IP55 rating.
- External sizes 1095mm x 1080mm x 2550mm (with stand).
- External sizes 1095mm x 1080mm x 1400mm (unit only).
N.B. Refurb machine will be with cleaned existing filters.
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
