Machines & equipment for sale

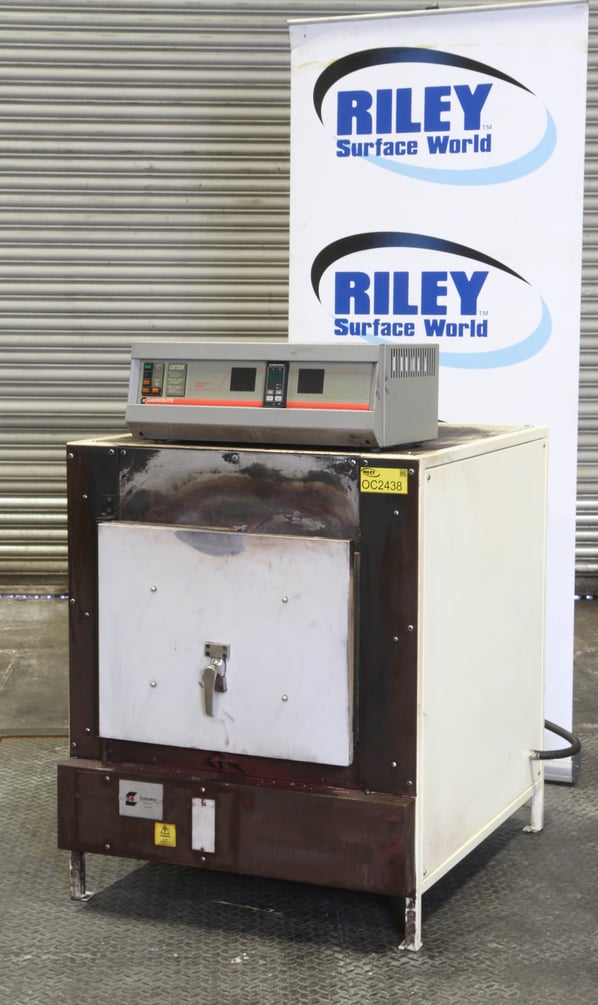

Carbolite General Purpose 1200°C Benchtop Furnace

Stock No
OC2438
Manufacturer
Carbolite
Model
GPC 12/81
Year of Manufacture
1985
Serial
1/85/138
Condition
Seen working by RSW, Seen powered at RSW
Internal Size (WxDxH mm) [?]
450 x 700 x 300 (81 Litres)
Max Temp
1200°C // 13kW
Other Info
Working order but with some damage.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
204
External Dimensions (WxDxH mm) [?]
800x1050x1140+ Controller = 380x570x225
Delivery
Your delivery options

Description

Carbolite General Purpose 1200°C Laboratory Furnace

Ventilation

  • If the furnace is to be used for heating materials which produce smoke or fumes, the chimney must be correctly fitted and unobstructed. Otherwise, soot will accumulate in the chamber and between the layers of insulation, causing an electrical breakdown of the heating elements. Furnaces used for this kind of application must be heated regularly up to maximum temperature and held for one hour to burn away the soot.

Corrosive Materials

  • Materials such as case hardening compounds and other reactive salts readily penetrate the ceramic lining of the furnace chamber and attack the wire elements, causing premature failure. When such materials are being used, the furnace must be protected by a hearth plate or tray, preferably made from material such as Inconel.
  • Non-metallic hearth plates reduce the heat transmission from the bottom of the furnace and increase the element temperature in this area. This may result in premature element failure, particularly if the furnace is working near to maximum temperature. Under these circumstances, it is recommended that the temperature be raised slowly over the last 300°C, allowing approximately 10 minutes to soak at 100°C intervals.

Technical Data

  • Model: GPC 12/81
  • Maximum Temperature: 1200°C
  • Maximum power rating  13kW
  • Chamber 450mm x 700mm x 300mm (81 Litres)
  • Eurotherm temperature Controller  808.
  • Integral safety door switch.

Seen working to 1200°C at RSW (15/05/2023)

pdf icon Print / Download Carbolite General Purpose 1200°C Benchtop Furnace Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
