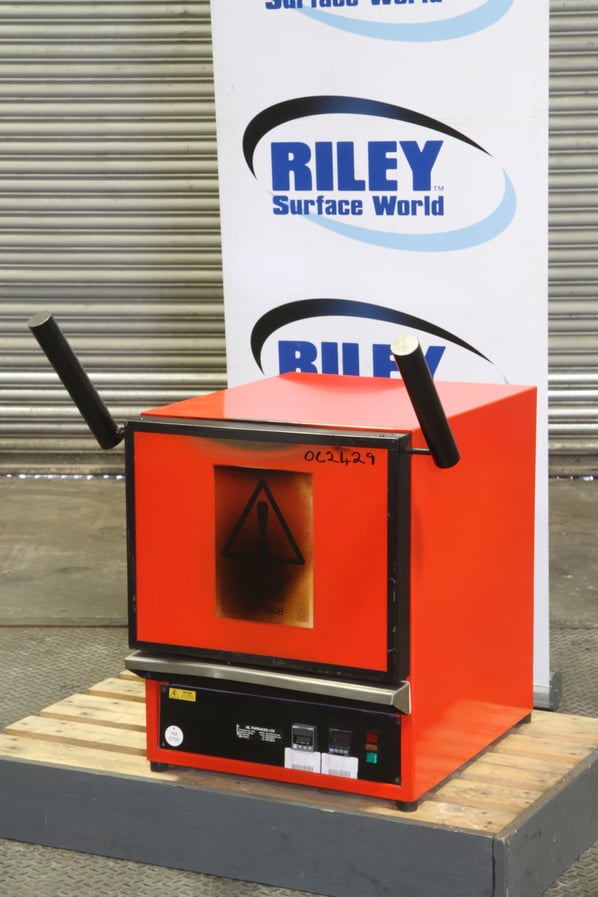

ML Furnaces M9 1200ºC Bench Top Furnace

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
OC2429
Manufacturer
ML Furnaces
Model
M9
Serial
12910311
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
300 x 465 x 285
Max Temp
1200°c
Other Info
7 Kw
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
132
External Dimensions (WxDxH mm) [?]
800 x 900 x 750
Delivery
Your delivery options

Description

From a range of well proven highly efficient muffle type furnaces incorporating features which combine the expertise of generations of furnace construction and design, together with the latest high technology, components, and techniques.

  • Safe, simple and economical to use
  • Graded elements for uniform temperature
  • Efficient Low thermal mass insulation
  • Microprocessor based digital control
  • Safe vertically lifting door
  • Full width stainless steel work shelf
  • Door operated safety power cut-off
  • Independent over heat protection option

General Description

Constructed by modular techniques `M` Range furnaces have an inner case `heat box` surrounded by an air gap with a case ventilation fan. This double skin construction ensures that the furnace casing remains relatively cool even when working at high temperatures.

The furnace lining consists of high efficiency graded low thermal mass insulation materials for reduced energy costs. Power to the heating element is controlled by a solid state relay for accuracy and reliability. A door interlock and over-heat protection with an over-riding contactor are provided for safety. (an independent over-heat control with cut out and reset button can be supplied as an option)

The vertically lifting full width door affords obstruction free access to the work chamber and keeps the hot face away from the operator at all times. The door is spring counterbalanced and a polished stainless steel shelf is fitted below.

Heating: The heating elements are high quality graded spiralled wire, carefully positioned and fixed in place around a hard wearing sillimanite muffle work chamber. The larger models, M7, M8 and M9 are fitted with ceramic tiles to form the chamber with the elements embedded in the side walls and as an option in the top tile.

Controls: The controls are below the furnace body and set an angle for ease of vision. A microprocessor based digital temperature controller with set-point and process displays provides accurate fully automatic control. Controls include thermocouple break protection.

Options include: alternative models of temperature controls/programmers/recorders/communications/timers/floor stands/chimneys / inert gas connections etc.

 https://www.mlfurnaces.com/bench-top-furnaces/

Onsite Data Collection

  • PM706 – 161 – Oven internal roof collapsing, needs replacement.
  • OEM – ML Furnaces Ltd
  • Model – M9
  • Serial – 12910311
  • Max Temp – 1200°C
  • Dims (WxDxH) – 800mm x 900mm x 750mm
  • Internal (WxDxH) – 300mm x 465mm x 285mm
  • 7 Kw
  • 230 Volt, 50 Hz, single phase

pdf icon Print / Download ML Furnaces M9 1200ºC Bench Top Furnace Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
