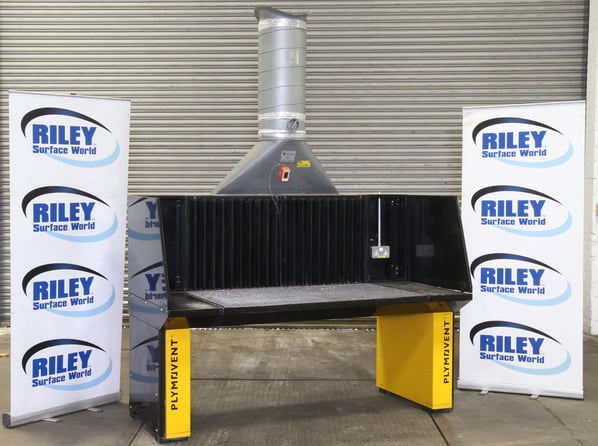

Plymovent DraftMax Eco Extraction Bench

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Available for immediate collection
From a working environment, Good Condition, Current Model
Stock No
DraftMax Eco
Year of Manufacture
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
Recommended 3000M3/Hr
Filter Area ft² / m²
Other Info
Requires External Extraction
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm) [?]
2040 x 910 x 2590mm
Your delivery options


DraftMax Eco is a downdraft workbench with an integrated spark arrester but contains no filter cartridges. DraftMax Eco is suited for ductwork. It has to be connected to an external fan and filtration system, such as the SCS or MDB filtration unit.

Ideally suited for welding applications to provide a safe working environment for the operators so that welding fumes are extracted via the rear of the unit and any sparks fall below the working grid. Approx. 80% of the air is extracted through the backdraft panel and 20% through the work grid.

  • The two end panels can be swung around to aid cleaning or to enable longer workpieces to be placed onto the bench.
  • The removable grids can be lifted out to aid in cleaning.
  • A Chevron airflow LEV monitor is fitted to show the efficiency of the unit and to indicate when the extraction needs to be cleaned.
  • Double  240 Volt electrical plug socket.

Extraction Benches

  • Extraction Area (WxD) - 1340mm x 730mm (2 off Grids)
  • External Dims - 2040mm x 910mm x 2590mm
  • Suitable also for fettling and grinding work
  • Height adjustable 800mm to 950mm

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

pdf icon Print / Download Plymovent DraftMax Eco Extraction Bench Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
