Machines & equipment for sale

Mannesmann Demag Swing Jib and Power Hoist

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
MC797
Manufacturer
Mannesmann Demag
Model
SWL 75Kgs
Year of Manufacture
1995
Serial
61603163
Condition
From a working environment, Good Condition
Capacity
SWL 75Kgs
Process Application
Lifting and Positioning
Other Info
Requires installation and certification.
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1400 x 400 x 3000
Delivery
Your delivery options

Description

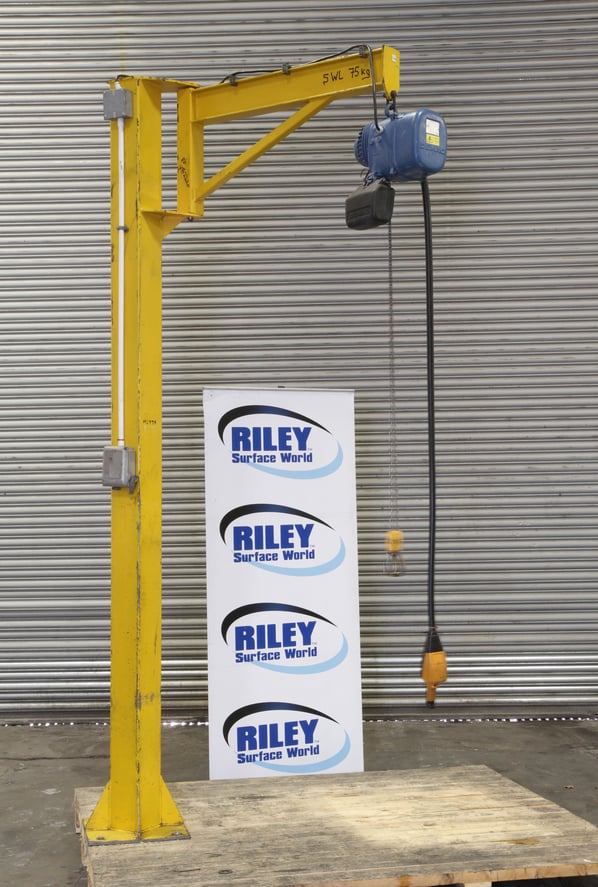

The jib crane consists of a horizontal beam called a jib or jib arm to which a hoist is attached. The jib arm is supported by the post fixed to the concrete base with resin anchors. The jib crane’s arm slews to a given angle and the hoist is fixed to the arm.

Details

  • Hoist is a 'DEMAG'  unit with an SWL of 75kg
  • Arm Pivot Length: 1000mm approx.

Professional installation will be required.

Hoist

  • 1400mm x 400mm x 3000mm SWL 75kg
  • Motor size PKVUN1-V14
  • SNo: 61603163
  • YOM 1995
  • 240/415v
  • 50Hz
  • 0.95/0.55 amp

pdf icon Print / Download Mannesmann Demag Swing Jib and Power Hoist Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
