Guyson International Marrline 3 Stage

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Refurbished by RSW, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
DB1463
Manufacturer
Guyson International
Model
Marr- Line 3 Stage 500 x 300
Year of Manufacture
Ref 2013
Serial
802494
Condition
Refurbished by RSW, Excellent Condition
Work Envelope (WxDxH mm) [?]
500 x 300 mm
Process Stages
3 stage, wash, rinse, hot air dry
Other Info
Stainless Steel Construction
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1200
External Dimensions (WxDxH mm) [?]
5520 x 1650 x 1670 mm
Delivery
Your delivery options

Description

The Guyson Marr-Line can provide a tailored solution for most washing, rinsing, drying and coating applications for a wide range of components.

The Guyson Marr-Line wash system provides the very latest in safe aqueous technologies, ideally suitable to incorporate into a modern cellular workflow environment

The Guyson Marr-Line system delivers

  • Stringent cleanliness standards
  • Targeted wash spray patterns for optimum cleaning results
  • Elimination of manual handling
  • Removal of bottle necks and buffer stocks
  • Honeycomb belt to carry components directly or in baskets

Since heightened awareness of safe aqueous industrial cleaning was introduced by the Montreal Protocol (to eliminate the use of substances that depleted the ozone layer), and with the recent introduction of the ‘Solvent Emissions Directive' or SED (replacing environment damaging solvents), it now makes even more sense to look at how you could introduce a Guyson Marr-Line aqueous cleaning system into your cleaning regime.

Features

  • High flow spray jets deliver maximum power in both the wash and rinse sections, driven through stainless pumps and pipework.
  • Full stainless construction throughout ensures that your Marr-Line will remain corrosion free throughout its life cycle.
  • Both heated tanks are fully lagged for maximum heat conservation and have an automatic water fill system that allows for continuous running. Low water level sensors will switch off the machine, safeguarding the equipment in the event of failure.
  • The Marr-Line component rinsing removes not only excess wash solution but also delivers high cosmetic component quality standards with spot and stain free surfaces if used with de-ionised water.
  • Component drying is an important consideration and is achieved by the re-circulating hot air oven in the final stage and this will be able to evaporate the final moisture residue as the component moves through to the end of the convener.
  • Keeping your Marr-Line in peak condition could not be easier, as the machine incorporates a range of productivity and maintenance benefits including features such as washable coarse filters, automatic water fill and low level water sensors.
  • The controls of the machine incorporate a 24/7 Timer allowing the tanks to be heated prior to the start of shift, Indexing or continuous belt operation, digital temperature control of the blow off chamber, solution heater control, variable speed belt on continuous mode.
  • The machine has removable panels fitted to each wash and rinse section, allowing full service access. The spray bar units are fitted with quick release couplings, so that they can be un-clipped and the whole assembly removed for bench maintenance.



Electrical Details: 3ph / 400v / 50Hz
Max Motor Amps: 9.5

Current Run Hours: 22611

pdf icon Print / Download Guyson International Marrline 3 Stage Datasheet

Additional files

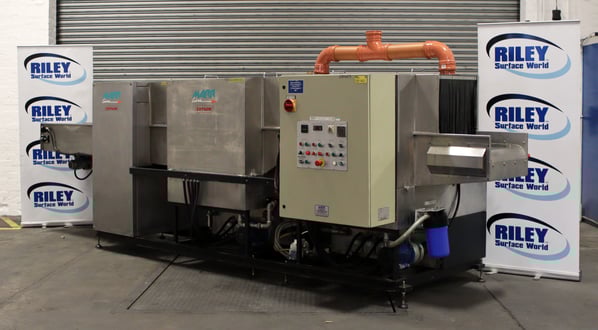

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
