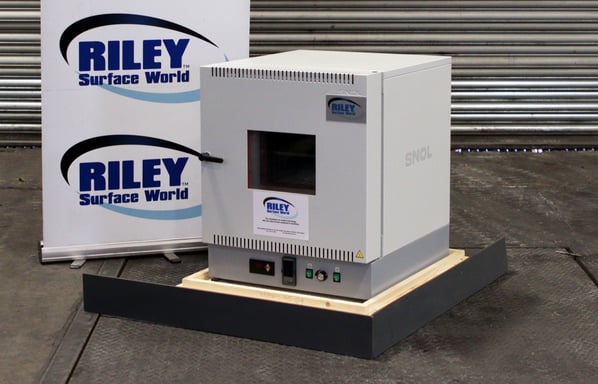

SNOL 60 Litre 300°C Laboratory Oven with Stainless Steel Chamber

Stock No

OB2355

Manufacturer

SNOL

Model

60/300 LSN11

Year of Manufacture

2022

Serial

1128

Condition

Brand New, Unused, Current Model

Internal Size (WxDxH mm) [?]

380 x 370 x 420

Max Temp

300°C

Other Info

240 Volt Single Phase

Weight (kgs)

49

External Dimensions (WxDxH mm) [?]

630 x 755 x 775

Delivery

Your delivery options

Description

These electric laboratory ovens are designed for treatments such as drying, heating, thermal testing, aging and similar purposes.

The forced air convection used by these ovens allows a homogenous temperature distribution during all processes, ensuring optimal results as well as good technical parameters to ensure high-quality results.

Air circulation is critical for efficient and uniform heating and horizontal air flow is achieved via variable (0-100%) fans which maximise temperature uniformity.

The oven can be used in scientific laboratories, educational institutions, medicine and industry.

SNOL - a leading thermal engineering manufacturer

SNOL is one of the leading oven and furnace manufacturers in the world. The company is based in Lithuania with subsidiaries in Germany and Ukraine. Founded in 1960 SNOL and is part of the Baltic State's largest metal processing group, employing over 700 people. 90% of production is exported from Lithuania into 40 countries in Europe and worldwide.

Riley Surface World and SNOL is a unique partnership. It combines Europe’s finest industrial and laboratory oven manufacturer with a UK company renowned for its high levels of industry knowledge, service and technical support.

SNOL laboratory ovens are available from stock or by special order, depending on requirements for temperature, size and metal treatment process.

Features include

• 300°C maximum operating temperature
• Viewing Window
• 60 litre chamber volumes
• High degree of accuracy
• Low electric power usage for increased energy efficiency
• Short heating up / cooling down period
• Forced horizontal air circulation
• Stainless Steel internal chamber
• Outside casing – stainless steel with a powder painted exterior
• Control panel is placed in the underpart of the oven
• Hermetically sealed doors
• Ventilation motor on back for adjustable chamber ventilation to exhaust smoke or other fumes
• 3 stainless steel shelves
• High quality rock wool insulation
• Equipped with programmable controller Eurotherm 3208 Controller
• Over temperature protection
• Microprocessor – temperature controller
• Solid State Relay (SSR) heating power control for close control of the heating profile
• Air fan speed controller
• Buzzer
• 2 years warranty

Accurate Control

The control and safety mechanisms for the 300°C Laboratory Oven Range are sophisticated but easy to use.

Eurotherm 3208 temperature controller fitted with self-tuning and manual PID settings. This offers up to 5 programmes and 4 segments (rate of temperature rise or decrease control, maintenance of present temperature, automatic shutdown).  A clear LCD screen provides easy-to-use visual feedback

This controller includes an auto tuning feature, an advanced feature demonstrating the quality and reliability of this control solution.
Auto tuning allows for closer control of oven temperatures based on the work it is undertaking improving accuracy and uniformity.

Paired with this is a Eurotherm 3216 as a dedicated over temperature controller. Picked as the most user friendly solution with a clear screen this provides a safety backstop for the oven.

Technical specifications

• Temperature range 50 - 300ºC
• Chamber dimensions: 380mm x 370mm x 420mm
• Construction Material: Powder coated steel exterior
• Volume: 60 litre
• External dimensions: 630 x 755 x 775mm
• Power:  2kW
• Voltage:  240V
• Non Programable over temperature controller

Print / Download SNOL 60 Litre 300°C Laboratory Oven with Stainless Steel Chamber Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
