Guyson Marr M-Line-3 Multi Stage Degreasing System

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
29 September 2022 15:00 GMT while stocks last
Part of a Direct Site Clearance
Riley's Cleaning Machine Event
Condition
Seen working by RSW, Refurbished by RSW, Excellent Condition, Current Model
Location
Aldridge, Walsall, UK
Stock No
DB1449S
Manufacturer
Guyson Marr
Model
M-Line-3
Year of Manufacture
Ref 2020
Serial
802541
Condition
Seen working by RSW, Refurbished by RSW, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
Belt 600 x 6000 x 220
Process Stages
3 stage plus 2 x blow off between stages
Other Info
NEW Filtermist & Conveyor Drive
Location
Aldridge, Walsall, UK
External Dimensions (WxDxH mm) [?]
6200 x 1700 x 2200

Description

The Guyson Marr-Line 3 Multi Stage Degreasing System can provide a tailored solution for most washing, rinsing, drying and coating applications for a wide range of components.

This Guyson Marr-Line system delivers:

  • Stringent cleanliness standards.
  • Targeted wash spray patterns for optimum cleaning results.
  • Elimination of manual handling.
  • Removal of bottlenecks and buffer stocks.
  • Honeycomb belt to carry components directly or in baskets.

Since heightened awareness of safe aqueous industrial cleaning was introduced by the Montreal Protocol (to eliminate the use of substances that depleted the ozone layer), and with the recent introduction of the ‘Solvent Emissions Directive' or SED (replacing environment damaging solvents), it now makes even more sense to look at how you could introduce a Guyson Marr-Line aqueous cleaning system into your cleaning regime.

High flow spray jets deliver maximum power in both the wash and rinse sections, driven through stainless pumps and pipework.

Full stainless construction throughout ensures that your Marr-Line will remain corrosion free throughout its life cycle.

Both heated tanks are fully lagged for maximum heat conservation and have an automatic water fill system that allows for continuous running. Low water level sensors will switch off the machine, safeguarding the equipment in the event of failure.

The component rinsing removes excess wash solution and delivers high cosmetic component quality standards with spot and stain-free surfaces if used with de-ionised water.

Component drying is an important consideration and is achieved by the re-circulating hot air oven in the final stage and this will be able to evaporate the final moisture residue as the component moves through to the end of the convener.

Keeping your Marr-Line in peak condition could not be easier, as the machine incorporates a range of productivity and maintenance benefits including features such as washable coarse filters, automatic water fill and low-level water sensors.

The machine controls incorporate a 24/7 timer allowing the tanks to be heated prior to the start of shift, Indexing or continuous belt operation, digital temperature control of the blow-off chamber, solution heater control, variable speed belt on continuous mode.

The machine has removable panels fitted to each wash and rinse section, allowing full-service access. The spray bar units are fitted with quick-release couplings so that they can be un-clipped and the whole assembly removed for bench maintenance.

Electrical Details

  • 400v 3Ph 50Hz
  • FLA 93A
  • Max motor amp 19A
  • Isolator capacity 70kva
  • Full load kva 64.43
  • Control voltage 24 Volts

Equipment

  • Heated wash tank (4 x 4kW heating elements).
  • Wash tank oil skimmer.
  • Pump and filter.
  • Heated rinse tank (4 x 4kW heating elements).
  • Rinse tank oil skimmer.
  • Pump and filter.
  • Blow off oven heating (4 x 3kW) plus air circulation fan.
  • Steam exhaust fan and ducting on the wet stages.

pdf icon Print / Download Guyson Marr M-Line-3 Multi Stage Degreasing System Datasheet

Additional files

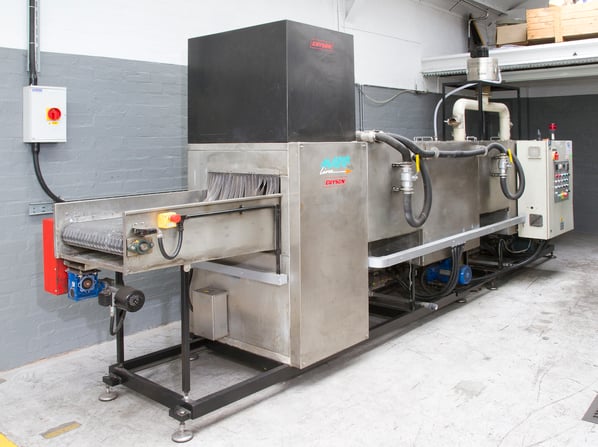

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
