Machines & equipment for sale

JKF Industries 8 Blade Impeller Centrifugal Fan

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Refurbished by RSW, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
FA132
Manufacturer
JKF Industries
Model
JK 55 K
Year of Manufacture
Ref 2020
Serial
55 12 71
Condition
Refurbished by RSW, Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
8K-29K M3/Hr at high press; 160-600mmWG
Filter Area ft² / m²
Fume Extraction
Other Info
inlet dia 550
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
880
External Dimensions (WxDxH mm) [?]
1300 x 1900 x 1720
Delivery
Your delivery options

Description

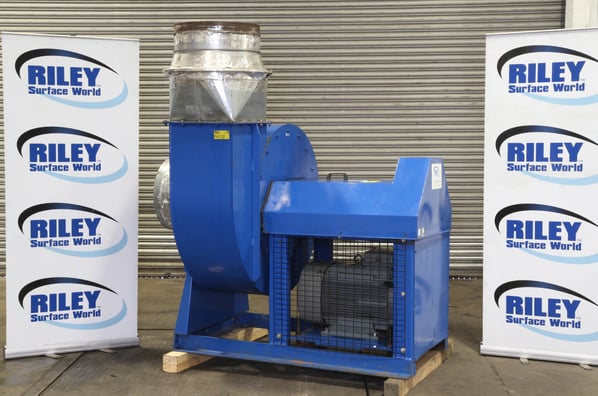

A JKF, L90 orientation centrifugal fan and motor mounted in a robust framework ready to connect to inlet and outlet ducting via suitable flange connections. Suitable for a wide range of applications.

  • 8,000 - 29,000 M³/Hr
  • Pressure 160 - 600mmWG

External dimensions =1300 x 1900 x 1720.
Inlet diameter = 550mm Outlet dimensions = 570mm

Brook Hanson Motor

  • 45kW
  • N=1460
  • 400 Volt
  • 3Ph

pdf icon Print / Download JKF Industries 8 Blade Impeller Centrifugal Fan Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
