Vacublast (Wheelabrator) USF Ventus 200 PMB Pressure Blasting Paint Stripping Shot Blasting Cabinet

Vacublast USF Ventus 200 PMB Pressure Blasting Paint Stripping Shot Blasting Cabinet

Internal Arrangement of Blasting Cabinet

Used / Second Hand

Sold As Seen Price [?]: £ Login or Register for price
Availability:: In stock now
Condition: From a working environment, Seen working by RSW, Excellent Condition

Buy Now Add to Quote Contact Us

Stock No: SA912
Manufacturer: Vacublast (Wheelabrator)
Model: Ventus 200 PMB
Year of Manufacture: 11.03.2002
Serial: 300562/VB13346
Condition: From a working environment, Seen working by RSW, Excellent Condition
Work Envelope (WxDxH mm) [?]: 1700 x 2000 x 1490 Above Work Table
Work Handling Method: Manual Rotary Heavy Duty Work Table
Other Info: Exceptional Paint Stripping Facility
Location: Rolls Royce stores, near Derby, UK
External Dimensions (WxDxH mm) [?]: 4200 x 3890 x 3300
Delivery

Description

Wheelabrator Vacublast USF Ventus 200 PMB Pressure Blasting Machine

A much sought after large pressure blast cabinet suitable for use with steel media, with pull-out rotary table, separate 60 litre heavy duty blast generator pressure pot, and cyclonic reclamation cleansing unit, designed and built for the aerospace industry.

This used Vacublast pressure feed hand blast cabinet is essential when removing heavy corrosion, tough coatings or when high production rates are required.

Designed specifically for plastic media blasting applications where high work output is required combined with optimum abrasive quality. It offers advanced features to maximise abrasive integrity and ensure efficient operation

Previously used in the aerospace industry using plastic media.

Blast chamber

Approximate wall to wall dimensions: 2000 x 2000 x 2000 mm

11 KW rating

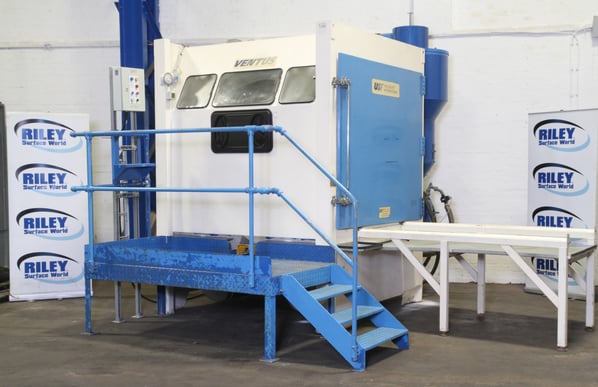

The machine is accessed by a spacious 3 step fabricated working platform, complete with safety barriers. The cabinet has a large door with seals fitted, located on the right-hand side of the machine. Two roof-mounted light panels illuminate the chamber.
A 1500mm rotary diameter load table with a powered tilting mechanism is mounted on a wheeled subframe for easy transfer from the working area to the loading/unloading area via a fabricated rail system, minimising any manual handling.

The Blast chamber also houses a blast gun specifically configured for plastic media, along with a manual, handheld air wash gun to remove debris prior to exiting the machine.

** For a relative simple modification alteration ie : gun, this machine can be configured for use with steel shot.

Additional cabinet features include:

- Internal lighting
- Large 3 section, full chamber width viewing window
- Large operator armlets
- Adjustable blasting pressure

Rear blast generator and reclamation cleansing unit

The blast media is drawn through the waffle floor and passed through a cyclonic separator where the amount of waste separation can be controlled by the setting of the air wash eductor. The air wash is set to retain the reusable media and reject the undersized and waste dust to the dust collector. The reusable media passes from the cyclone separator over a full-width magnetic separator before dropping onto a vibrating debris screen which removes any oversized particles and debris. Located at the bottom of the storage hopper is the 60 litre pressure vessel which stores the blast media ready for use.

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.
