CPS Electroless Plating Bench for Numerous Wet Treatments

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
TZ270
Manufacturer
CPS
Model
Wet Immersion Treatment Bench
Condition
Seen working by RSW, Excellent Condition
Work Envelope (WxDxH mm) [?]
300 x 300 x 200 x 8off
Process Stages
8
Other Info
See images exceptional process support
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
610
External Dimensions (WxDxH mm) [?]
3300 1250 x 2030

Description

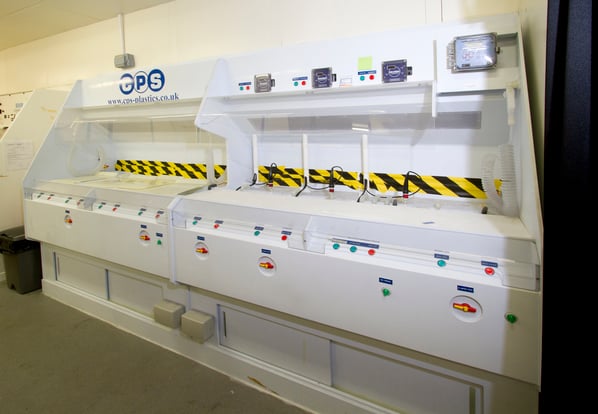

CPS Electroless Plating Bench

Electroless plating, also known as chemical plating or autocatalytic plating, is a class of industrial chemical processes that create metal coatings on various materials by a single chemical reaction of metal cations in a liquid bath.

The CPS Electroless Bench, consists of a 6 station wet cleaning and electroless plating process, with 3 pre-treatment stations and 3 electroless plating stations respectively. This process is commonly used in semiconductor manufacturing or other high technology products.

Each cleaning station consists of an acid etching tank and DI (de-ionized) water used in e rinsing tank, to ensure a high level of cleanliness.

  Air sparge supply achieved by three Almatec series E pumps located at the rear of the bench

The de-Ionizing water supply is controlled from the front control panel, along with air sparge to tanks to each station and Each station has an operator panel which controls:

  • The supply of de-ionized water
  • The operation of an air sparge, which increases the efficiency of the wet etching process
  • Solenoid activated tank drain.

Each electroless plating plants have solution conductivity probes linked to a Walchem Plating Solution controller and thermocouples linked to a Braude Thermaster temperature controller.

This machine is part of our unique Solar Panel Wafer & Semiconductor Machinery event.

This event is a complete working cell of equipment used in the manufacture of the BP Solar Saturn Cell (Laser Grooved Buried Contact) for solar concentrator systems by Solar Capture Technologies, UK. This successful R&D process is now being industrialised and this unique collection of machinery is surplus to requirements.

Significant Benefits for you

Huge price discount compared to new

Available now - No manufacturer lead times
Moved to our central warehouse for convenience of sale and viewing

Individual pieces or full cell available to purchase

// Available as a whole for discounted cost of just £175,000 including spares //

// Individual machinery pieces listed for a total £300,000. Priced to sell! //

// Mesh belt furnaces by separate negotiation //

Features

  • PRTD sensor
  • capillary or compensating cable
  • no moving parts
  • Permanent clear display of solution temperature
  • Relay operation: 3 & 3 wire output, break on rise (std) or make on rise*
  • Simple set point adjustment
  • Easy to calibrate: set temperature plugs available
  • Range -10°C to +110°C, ±1°C accuracy
  • “Heater on” display “Probe fault” indication
  • Dimensions: 125mm x 125mm x 75mm deep

Solution Control is achieved by using a Walchem WCU410 series controllerThe WCU410 series copper controllers are optoelectronic on-line analyzers that may be used in variety of applications such as;

  • Electroless copper baths
  • Microetch
  • Multiple chemistries that contain more than 0.10 grams/litre (g/L) of copper ions.
  • Four control relays are available that may be set up to feed chemicals, or as alarms.
  • A fifth relay is used as a diagnostic alarm.
  • Isolated 4-20 mA output
  • Any set point may be viewed without interrupting control.

Bench fumes are managed by a common extraction ducting located at the rear of the bench

CPS Electroless Plating Benches are used in the manufacturing process of the following industries

  • Semiconductor
  • Solar
  • MEMS
  • LED
  • Bio-Medical
