Wellman Very Heavy Duty Electric Tempering Oven / Furnace

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
From a working environment, Good Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
OZ2131
Manufacturer
Wellman
Model
Front Loading Tempering Oven
Year of Manufacture
Rebricked
Condition
From a working environment, Good Condition, Seen powered at RSW
Internal Size (WxDxH mm) [?]
850 x 1350 x 830
Max Temp
750°C
Other Info
Load up to 1000 kg
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
4945
External Dimensions (WxDxH mm) [?]
1920 x 2850 x 3030
Delivery
Your delivery options

Description

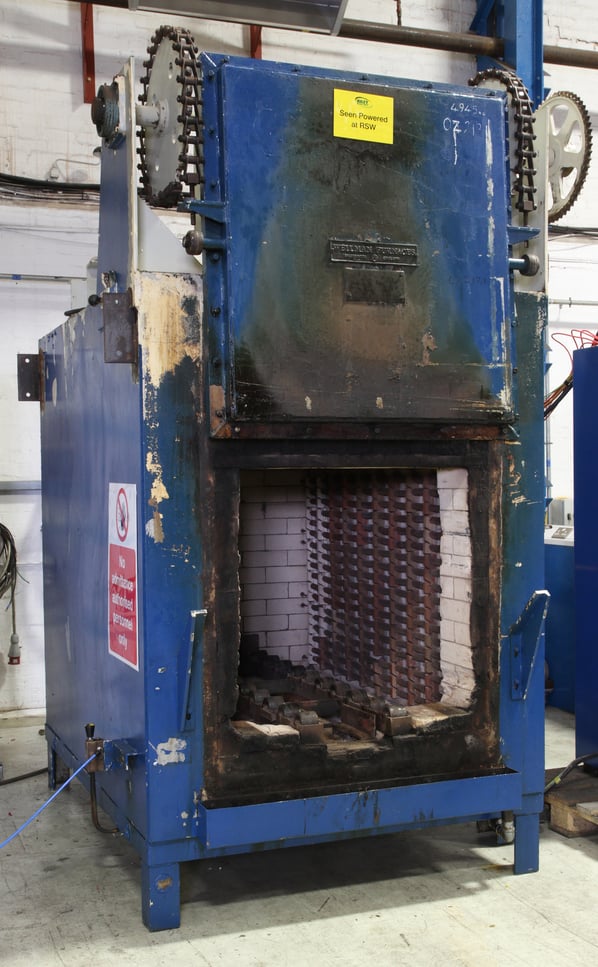

Wellman Electric 750°C Tempering Furnace

The Wellman Thermal Tempering furnace is for the process of heat treating, to increase the toughness of iron-based alloys after hardening.

Tempering is usually performed, to reduce some of the excess hardness, and is done by heating the metal to a temperature just below the critical point for a predetermined period of time, then allowing it to cool in still air.

The exact temperature determines the amount of hardness removed, and depends on both the specific composition of the alloy and on the desired properties in the finished product.

Furnace features

  • Eurotherm 3216 series temperature controller
  • Eurotherm 5100V Monitor
  • RS Components Over temperature control
  • Process timer
  • Flame failure alarm
  • Vertical uprising door
  • Thermal brick lined
  • Roller hearth charge
  • Roof mounted air circulation fan
  • Roof mounted extraction

Control panel dimensions – 600 x 600 x 1900 mm

pdf icon Print / Download Wellman Very Heavy Duty Electric Tempering Oven / Furnace Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
