Machines & equipment for sale

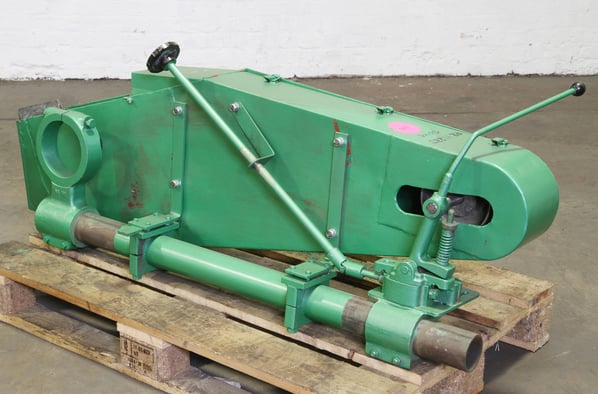

W Canning Vertical Backstand Idler including Banjo Bracket

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Refurbished by RSW, Good Condition
Stock No
PZ1128J
Manufacturer
W Canning
Model
Adjustable Belt Length
Condition
Refurbished by RSW, Good Condition
Other Info
Bolt to your existing polishing lathe
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
50
External Dimensions (WxDxH mm)
340 x 640 x 1460

Description

A left handed backstand idler for use with a variety of polishing lathes. Supplied with extended tracking control and adjustable spring loaded abrasive band tension device.

  •  Belt centres are 1,000mm
  • Adjustment of  ± 100mm
  • Idler pulley dia 155 mm width 100 mm banjo fitting Diameter 140 with possible 5mm adjustment.





pdf icon Print / Download W Canning Vertical Backstand Idler including Banjo Bracket Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
