Machines & equipment for sale

Powered Adjustable Height Fettling Bench with Lighting and Dust Extraction.

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
EZ1740
Model
Powered Height Adjustable Fettling Bench
Condition
Good Condition, Seen powered at RSW
Capacity
1000 x 850 open area
Process Application
Fettling
Other Info
Table height adjustable from 800 to 975
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
430
External Dimensions (WxDxH mm) [?]
2050 x 1200 x 2640
Delivery
Your delivery options

Description

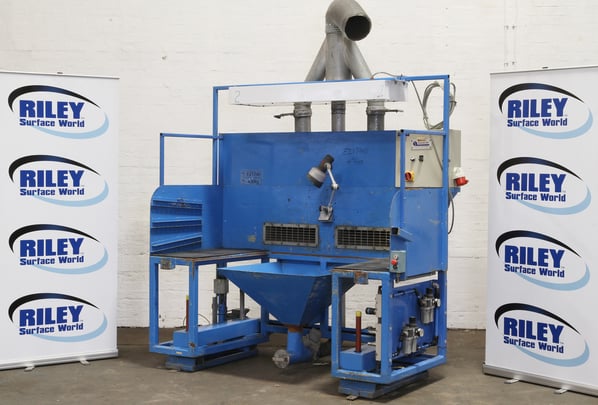

A large, robust 1.9m wide stand alone, adjustable height fettling booth / work station with integral lighting and fume extraction facility.

Uses.

  • Protection for operators and local personnel from fumes and flying debris.
  • Ideal for Fettling or possibly welding, Soldering or Brazing.
  • Can be used to contain fumes generated by gluing, curing or similar processes with a suitable extraction system.
  • Dust containment again when connected to a suitable extraction system.

Features.

  • Can take up to 250Kgs.
  • Powered adjustable working height. (800 to 975)
  • Powerful overhead strip lights and an articulated spot light for greater illumination of specific areas.
  • Painted mild steel outer frame.
  • Twin integral vents  to allow fume extraction.
  • Inter-changable base plates for work support.
  • Rear and  lower fume extraction ducting for connection to suitable dust/fume extraction system.
  • Work Envelope approx. 1900 x 1000
  • Side mounted pneumatic connection points.
  • Lower centralised waste collection point for collection of heavier particles.
  • 800 x 750 hopper size.

  • Screw jack motor info:
    230/400 v
    2.8/1.6 A
    1390/1410 r/min
    0.55 KW

pdf icon Print / Download Powered Adjustable Height Fettling Bench with Lighting and Dust Extraction. Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
