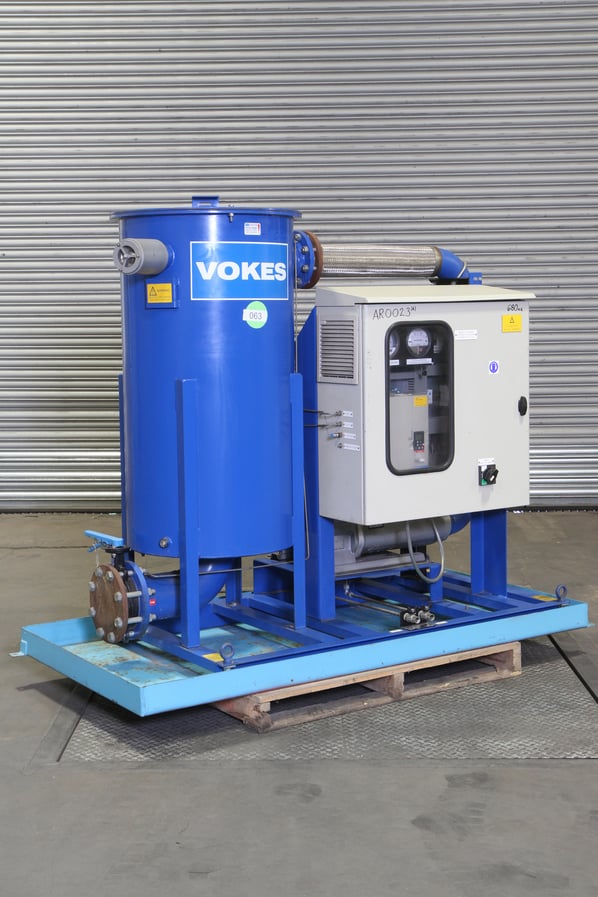

Vokes Oil Mist Eliminator / Oil Separator

Stock No

AR0023A

Manufacturer

Vokes

Model

APB OME

Year of Manufacture

2004

Serial

181131/1/2

Condition

Seen working by RSW, Excellent Condition, Unused

Approx Duty CFM / M³/Hr

850m3 @ 82c

Filter Area ft² / m²

1.6M²

Other Info

UNUSED Units

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

600kg

External Dimensions (WxDxH mm) [?]

2055 x 1000 x 1750mm

Delivery

Your delivery options

Description

APB Oil Mist Eliminator

Large volumes of lubricating oil are required to cool and protect the internal surfaces of engines gearboxes and turbines. These conditions result in the generation of oil mist, which traditionally was vented to atmosphere. however this may now not meet increasingly stringent environmental legislation.

Failure to deal with oil mist can at worst represent a significant environmental hazard and at best will attract dust and dirt making the site an unpleasant place to work.
Vokes oil mist eliminator systems have been designed to remove all visible oil mist

Used for:

Gas Turbines:
Gland, vents and lube oil vents

Steam turbines:
Bearings and gland vents

Diesel & Gas engines:
crankcase breathers

Gearboxes:
Vents

Benefits of the Vokes oil mist eliminator:

- Eliminates all visible oil mist
- Suitable for gas turbines and diesel engines
- Discharges clean air to atmosphere
- Eliminates oil stains reduces environmental pollution- improves site conditions
- Can be mounted away from the source at a convenient location
- APB Technology pressure balancing technology is included to ensure perfect operation without the need for operator intervention.

On start up and shutdown the pressures inside turbines and large diesel engines can vary dramatically, with the APB system the exhauster fan can be controlled to speed up or slow down to match the monitored pressure in the crankcase or vents to effectively keep the extraction rate of the oil mist and balance at optimum conditions.

Rated Capacity 850m³/hr @ 82°C

Air Blower - 7.5kW 3 phase

2915 Litres/min (103 cubic foot/min)



Print / Download Vokes Oil Mist Eliminator / Oil Separator Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
