Romer ProfiSpray V Powder Coating Gun

Stock No

NEW091

Manufacturer

Romer

Model

ProfiSpray V

Condition

Brand New

Weight (kgs)

55kg

External Dimensions (WxDxH mm) [?]

450 x 900 x 1050

Delivery

Your delivery options

Description

The ProfiSpray V is built of the highest quality materials and incorporates the most advanced technological features of all the powder coating guns developed by Romer.

Romer Spray units are characterised by their ability to provide high productivity and efficiency rates in the application of sprayed powders. They offer a simple operation to deliver excellent coverage even in the most difficult to reach places with plastic or metallic powders.

Adjustment features of the powder gun allows for overlapping elements with a homogeneous powder stream, whilst also allowing you to control the thickness of the coating, giving optimum coverage.

Benefits

• High qualify finish achievable: built and tested by a company that powder coats components every day
• Efficient and highly productive: designed to operate in a high volume environment
• Easy to Adjust & Easy to Use
• Keep spraying part after part with auto diagnostics and cleaning
• 12 month manufacturer warranty included

ProfiSpray V Powder Coating Gun

A patented design in the US & EU the ProfiGun is a great option for heavy & light users.

• Electronic control improves penetration, reduces orange peel and back-ionization even with the most difficult of powders
• Accurate powder delivery with a digital valve control
• Up to 100kV powder charging capacity for better paint delivery onto components
• Light and easy for long term use with an ergonomic shape and balance
• One finger trigger operation
• Adjust paint flow and program from the gun
• Robust impact resistant materials
• Excellent operator grounding with the high-carbon conductive handle, anti static powder hose and double grounding strap
• Integrated air purge
• Easy to maintain and disassemble with replaceable powder path
• On-gun cleaning function selection
• Integrated high voltage (HV) module for self contained powder application process

Powder Coating Injector

The Profijector powder pump is an efficient injector covered by European patents. It includes a the most efficient feed angle to save both paint and water giving lower running costs. Quick coupling makes maintenance easy.

Touch Panel and Control

• Easy to Use 7-inch touch panel
• Panel can be used with gloves
• Auto and manual spray settings
• Flexible and ad-hoc adjustment of voltage, current, powder and air
• 0.1kV and 0.1uA graduations in full adjustment range for great coverage of many paints and components
• 3 automatic programs (overcoating, hard-to-reach areas, flat surfaces)
• Name and store programs up to 20 programs
• Tailor fluidization, nozzle purge, current intensity curve in each program
• Sharp, standard and mild current intensity curves to suit paint and use case
• Advanced pneumatic valves to control the dose of air (patent pending)
• Real airflow measurement, responds to errors such as pressure drops or system blockages
• Quick Cleaning feature (approx 1 min run time)
• Advanced diagnostic tools with animated on screen troubleshooting module
• Built in help system that offers on screen advice for new users
• Ability to control from external master controllers via ModBus protocol
• Wear monitoring system to help with service time scheduling for components such as the injector cartridge, gun nozzles & powder hose
• Multiple languages supported
• Optimised process monitoring for both daily & per job data collection. Recording working time, ink consumption and efficiency summary.
• Calibration, statistics and more advanced features.

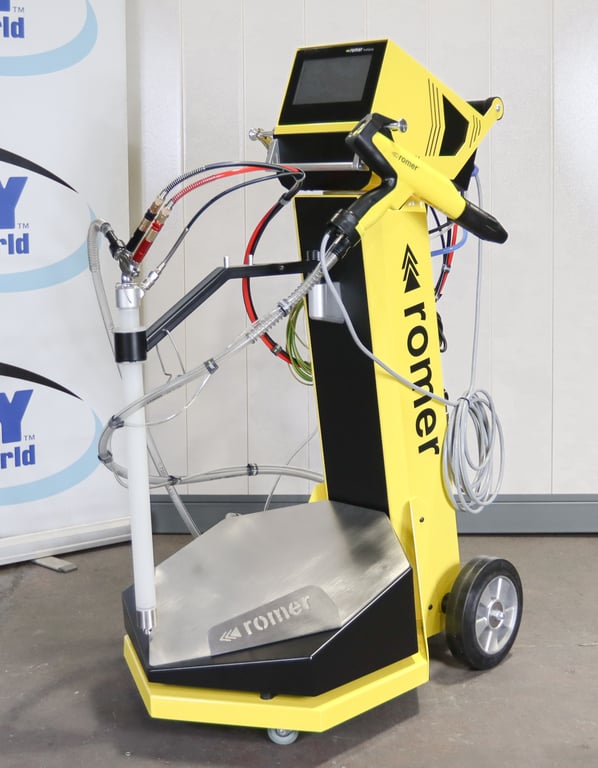

Stand Features

Pulling together the great control features and gun is an easy to move stand. This robust maneuverable trolley with vibrating powder box platform includes handy features for storing the Profispray gun, hoses and cables. This includes an air preparation unit.

The inclined vibrating table allows all the powder to be used and the fluidised suction tube is optimized for constant powder delivery.





Nozzle & Spare Parts

For a complete application, the spray gun is adaptable with a variety of interchangeable spray nozzles capable of large surface areas to concave corners. The nozzles capable of a spray output of 30° to 65° at a distance of 200mm to 450mm, you'll have all the nozzles you need for a solid paint application. Made from materials that resist electrical puncture and prevent powder paint from adhering to their surfaces, these nozzles minimise powder build up and reduce the risk of clogging.

Spare parts drawer with nozzle attachments such as conical, flat, diffusion and specialised nozzles to adjust spray angles and ranges for different spray applications.

Spare parts drawer with spare filters and gun parts to aid regular servicing and maintenance.

Provided spare parts include: RI-1 Injector Kit, 4 Injector O-rings in two sizes (14 x 2.2 & 11 x 1.5), 2 Injector Filters, A Pump Nozzle Cartridge

Technical Specification

• Type: Electrostatic (Corona)
• Voltage input: 220-240V
• Input pressure: 5.5 bar
• Output pressure: 0 - 6 bar
• Air quality/oil: less than 0.1mg/nm3
• Hose length: 5m
• Warranty period: 12 months

Quick Change Guns Instantaneous Colour Changes (Optional Feature)

A 'quickswap' variation is available, that allows user to change over guns in an instant to extremely quick colour changes.

Romer - Experienced Powder Coating Manufacturer

The outstanding feature of Romer ovens is the quality of manufacturing. Everyone who stands in front of a Romer, from buyers to calibration engineers, have commented how well constructed they are.

Romer have been manufacturing ovens and powder coating machines from their base in central Poland for over 25 years and export to 40 countries worldwide. Their 8,000m² facility employs over 150 staff and has passed Riley Surface World's inspection and auditing requirements.

Riley Surface World and Romer have secured a partnership to service the UK market with large (over 1m²) ovens up to 225°C and powder coating equipment.

Print / Download Romer ProfiSpray V Powder Coating Gun Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
