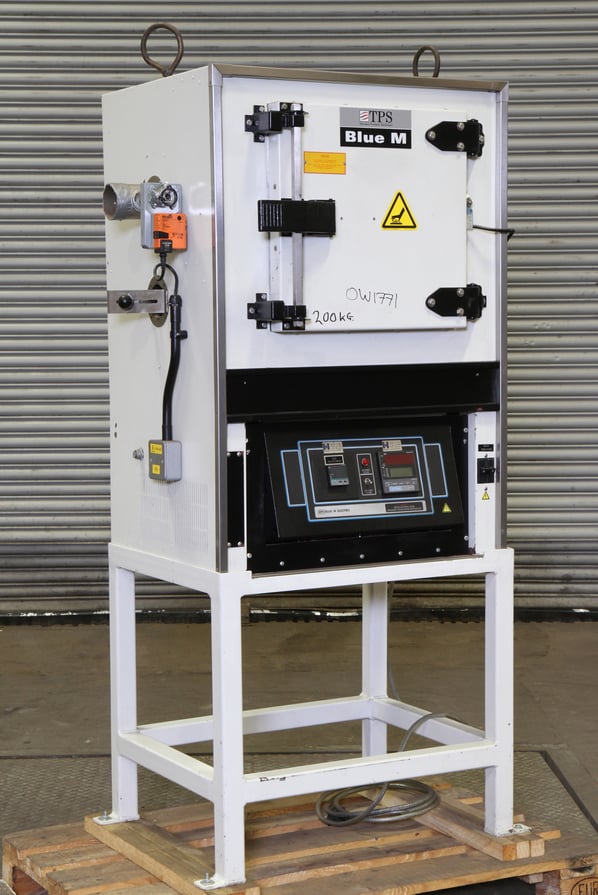

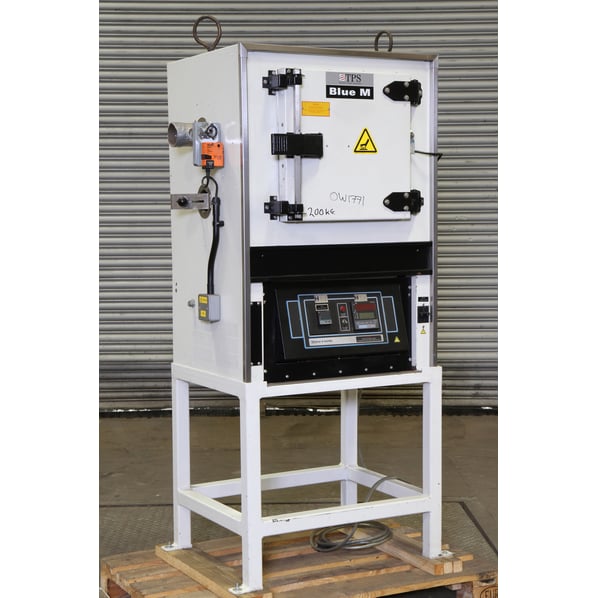

SPX Blue M TPS DC-146-NY-UP550 Oven

SPX Blue M TPS DC 146 NY UP550 Oven

Lot ID

OW1771

Manufacturer

SPX Blue M

Model

M/TPS DC-146-NY-UP550

Serial

43923

Internal Size (WxDxH mm) [?]

356 mm x 356 mm x 356 mm

Max Temp

350° C

Other Info

Rated 3 kW Max 220v/1ph/50 Hz

Location

Warehouse Clearance

External Dimensions (WxDxH mm) [?]

900 mm x 650 mm x 1710 mm

Delivery

Your delivery options

Description

Blue M 146 Standard Industrial Oven

One pass airflow system - introduces fresh air and allows moisture and odors to exit chamber when drying.
Exceptional Uniformity
Legendary Blue M reliability

Key Specifications

Temperature Range:15ºC above ambient to 350ºC
Control +0.5ºC
Uniformity +/-1%
Resolution: ±0.1°C
Run-up to 300°C in 60 minutes or less

Features and Benefits

- High quality design and simple operation - lower total cost of ownership
- Horizontal airflow ensures uniform thermal performance under all loading conditions
- Differential air pressure switches alert operators before costly problems with batch runs
- Many different workspaces sizes to fit virtually any requirement
- Quick access for simple inner chamber cleaning
- Easy to use controller for repeatable results and less training requirements
- Heavy gauge steel exterior for long lasting performance
- Reinforced 304 stainless steel interior resists corrosion and makes cleaning easy
- 100mm of fiberglass insulation saves energy and provide cool to the touch exterior
- 75mm diameter lead-in port allows for easy instrument pass through
- Adjustable air intake and exhaust dampers for flexible testing conditions
- Exclusive Blue M Eterna heating elements for extreme reliability and lifespan
- Infinitely variable control from full recirculation to full one pass to accommodate any processing need
- Yokogawa PV2 Digital Control & readout rofiling or single setpoint temperature controls offer flexible recipe options
- High-volume air delivery via a multi-blade centrifugal blower

Standard Safety Features

Safety airflow switch shuts off power to heater if no airflow

Condensed Specification

Model DC-146 (Bench model)
Interior Volume 1.6 cu.
Interior Dimensions WxDxH in (mm) 14 x 14 x 14 (356 x 356 x 356)
Exterior Dimensions oven only WxDxH in (mm) 34 x 30 x 43 (864 x 762 x 1092)
Machine Footprint 7.1 sq. ft.

Print / Download SPX Blue M TPS DC-146-NY-UP550 Oven Datasheet
