Machines & equipment for sale

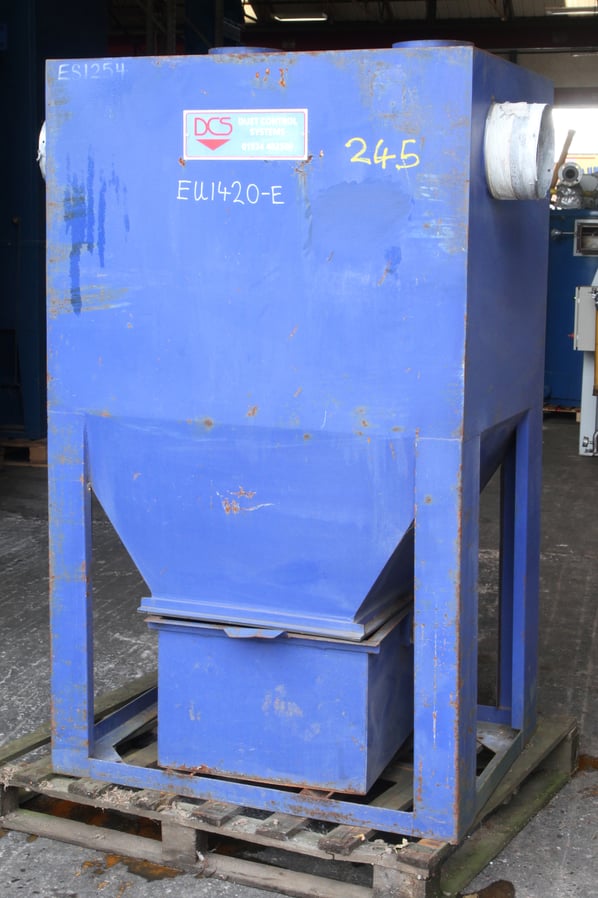

Nederman Spark Arrestor Box

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
EU1420E
Manufacturer
Nederman
Model
Spark trap box
Approx Duty CFM / M³/Hr
4000 // 6800
Filter Area ft² / m²
N/A
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1190 x 730 x 1740
Delivery
Your delivery options

Description

Nederman In-line spark traps reduce the possibility of fire by knocking down sparks from the airstream before they can enter your dust collection unit.

The dust laden air enters the spark trap and expands reducing the velocity and allowing the heavier particles to separate.

The air is then directed downwards by a deflection plate and impinged upon a bed of water contained within the catchment tray.

This helps extinguish the sparks before the air passes through to the secondary chamber and on to your extraction source.

The collection bin is then emptied at regular periods and the water within replenished.

Dual 200mm Dia Inlet/Outlets

pdf icon Print / Download Nederman Spark Arrestor Box Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
