Plasticraft Mild Steel Polypropylene Lined Chemical Processing Tank

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Buy Now Add to Quote Contact Us
Stock No
TS055
Manufacturer
Plasticraft
Model
Nylon Tank
Year of Manufacture
2008
Serial
Bath No. 8
Work Envelope (WxDxH mm) [?]
1740 x 780 x 1560mm
Process Stages
Single stage process tank
Other Info
Chemically resistant to acids & alkalis
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2005 x 1045 x 1760mm
Delivery
Your delivery options

Description

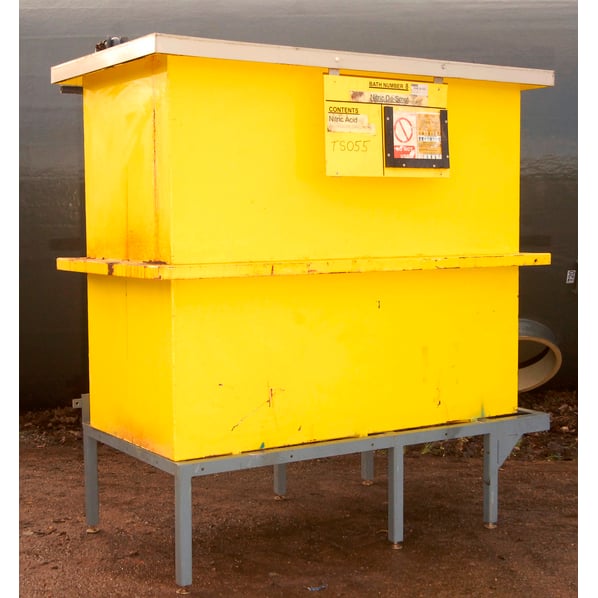

A heavy duty mild steel Polypropylene lined process tank manufactured by the UK's premier plant supplier Plasticraft.

Suitable for a wide range of chemical treatments processes

Internal dimensions 1740 x 780 x 1560mm

Why Line Your Steel Tanks with Plastic?

Steel tanks are known for their high temperature ratings and mechanical strength, but many times, they cannot be used to contain plating solutions. Corrosive solutions attack steel, and lead to leaks and tank failure. The common alternatives to steel tanks are using plastics, both as liners and free-standing structures. The chemical properties of these materials protect the solution from contamination and the steel from corrosion.

These plastics can include flexible polyvinyl chloride (PVC-P) and polypropylene (PP) which are also common alternatives to steel tanks. Despite some of their preferable properties being resistant to weather, chemical rotting, corrosion, shock & abrasion, they are not resistant to all chemical applications such as more aggressive plating mixtures. PP tanks have a high fire risk if there is an elevated temperature and electric immersion heathers while polypropylene tanks are quickly combustible and difficult to extinguish.

For a guaranteed lifetime, high quality tanks lined with plastics like Polyvinylidene fluoride (PVDF), known for its robust properties, can greatly reduce the cost of the tanks over the years when the initial investment is made upfront.

pdf icon Print / Download Plasticraft Mild Steel Polypropylene Lined Chemical Processing Tank Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
