Machines & equipment for sale

Volkes APB Oil Mist Eliminator

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
In stock now
Excellent Condition, Unused
Stock No
Year of Manufacture
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
850m3 @ 82c
Other Info
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm)
2055 x 1000 x 1750mm

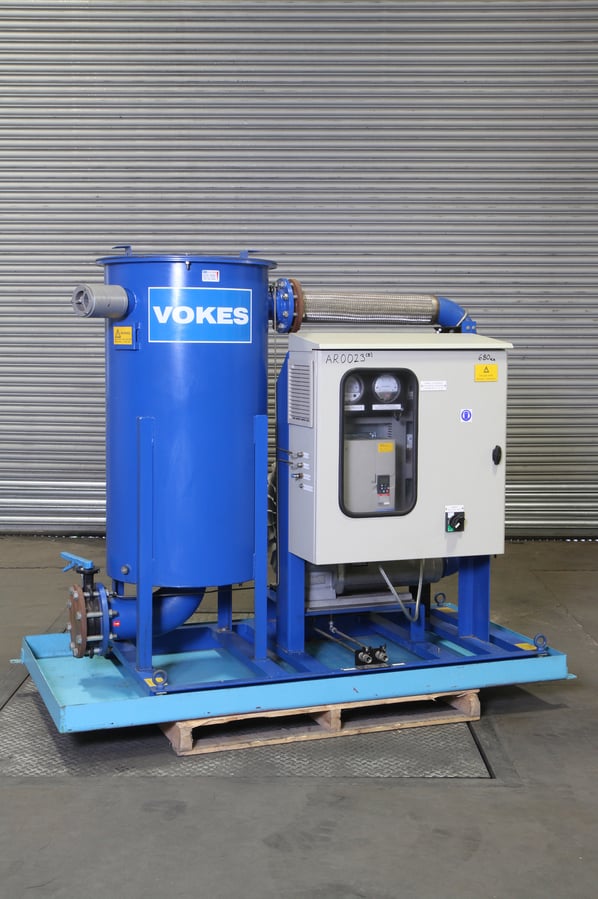

APB Oil Mist Eliminator

Large volumes of lubricating oil are required to cool and protect the internal surfaces of engines gearboxes and turbines. These conditions result in the generation of oil mist, which traditionally was vented to atmosphere. however this may now not meet increasingly stringent environmental legislation.

Failure to deal with oil mist can at worst represent a significant environmental hazard and at best will attract dust and dirt making the site an unpleasant place to work.
Vokes oil mist eliminator systems have been designed to remove all visible oil mist

Used for:

Gas Turbines:
Gland, vents and lube oil vents

Steam turbines:
Bearings and gland vents

Diesel & Gas engines:
crankcase breathers


Benefits of the Vokes oil mist eliminator:

- Eliminates all visible oil mist
- Suitable for gas turbines and diesel engines
- Discharges clean air to atmosphere
- Eliminates oil stains reduces environmental pollution- improves site conditions
- Can be mounted away from the source at a convenient location
- APB Technology pressure balancing technology is included to ensure perfect operation without the need for operator intervention.

On start up and shutdown the pressures inside turbines and large diesel engines can vary dramatically, with the APB system the exhauster fan can be controlled to speed up or slow down to match the monitored pressure in the crankcase or vents to effectively keep the extraction rate of the oil mist and balance at optimum conditions.

Rated Capacity 850m³/hr @ 82°C

Air Blower - 7.5kW 3 phase

2915 Litres/min (103 cubic foot/min)


pdf icon Print / Download Volkes APB Oil Mist Eliminator Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
