Machines & equipment for sale

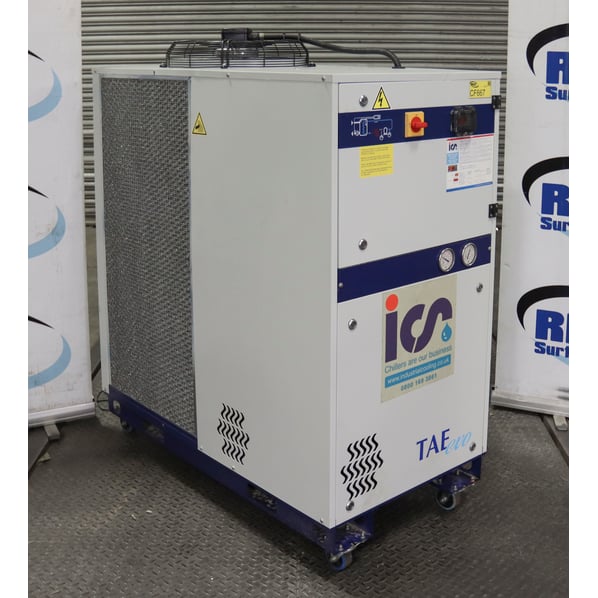

Industrial Cooling Systems (ICS) TAE EVO 051 Chiller

Stock No
CF667
Manufacturer
Industrial Cooling Systems (ICS)
Model
TAE 051
Year of Manufacture
2007
Serial
2200115851
Condition
From a working environment, Excellent Condition, Current Model
Ave. cooling capacity
20kw @ 15cwlt chilled water leaving temp
Ave. Water Flow Rate
2.55-6m3/h flow at a head of 2.9-1.9 bar
Other Info
Refrigerant - R407C
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
220
External Dimensions (WxDxH mm) [?]
670 x 1670 x 1400mm
Delivery
Your delivery options

Description

A popular pre-owned self contained air cooled package chiller has a cooling capacity of 14kW at 7ºC (20kW @ 15cwlt) chilled water leaving temperature in an ambient of 27ºC.

Suitable for a wide range of solution and water cooling applications including cooling of anodising plating applications, injection moulding, food, diary, laser cutting and air conditioning to name but a few.

Comprehensive control panel incorporating a microprocessor based digital temperature controller with fault diagnostics.

Specifications

  • R407c Refrigerant gas.
  • Approx. overall size -  670mm x 1670mm x 1400mm
  • Installed nominal power -  7.7kW
  • Internal storage tank - 110L
  • Ambient running temperature of -5°C to 44°C
  • 0.75kW circulation pump offering between 2.55-6m³/h flow at a head of 2.9-1.9 bar respectively.
  • Quite running hermetically sealed reciprocating compressor.
  • Single 1.15kW condenser cooling fan unit.
  • 1" bsp inlet / outlet connections.
  • 415 Volt 3ph
  • Weight - 220kg

pdf icon Print / Download Industrial Cooling Systems (ICS) TAE EVO 051 Chiller Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
