Machines & equipment for sale

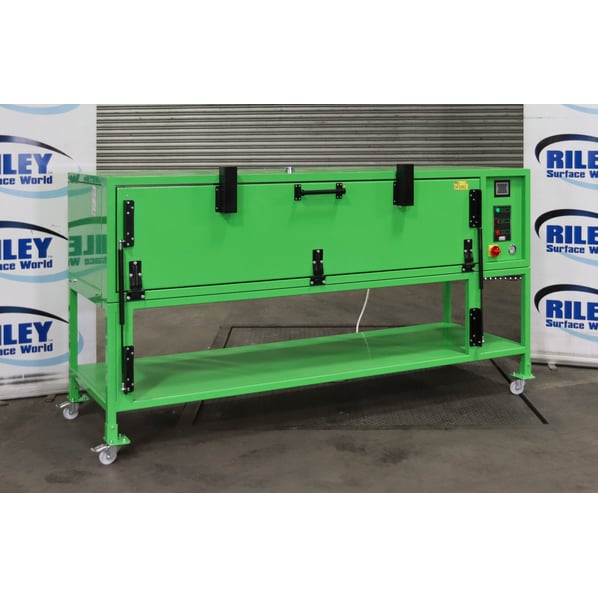

Genlab Prime XL Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
OF2662
Manufacturer
Genlab
Model
SP/PRO/360V/TDIG/AWA
Year of Manufacture
2019
Serial
19J150
Condition
From a working environment, Excellent Condition
Internal Size (WxDxH mm) [?]
2000 x 450 x 400mm (330mm + Tray) 360L
Max Temp
250°C
Other Info
Originally Used for Resin Autoclaving
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
230
External Dimensions (WxDxH mm) [?]
2500 x 900 x 1360mm on Wheels
Delivery
Your delivery options

Description

This special oven from the Prime XL Ovens are the flagship brand of Genlab Large Capacity Ovens. These are built to the highest standards and packed with features and enhancements. As standard, the Prime XL range offers heavy duty stainless steel interior, increased accuracies on our standard models and are quicker responding. Built around a heavy duty panelled framework,  they offer increased load capabilities in the range and operate at 40°C to 250ºC continuously. It features the latest touch screen control system which offer intuitive control designed for industrial ovens. Originally used for resin autoclaving.

Features

  • The exterior is constructed around a structural frame and finished with powder coated clad panels covering heavy duty insulation. The interior chamber is made from aluminium coated mild steel and is fitted with a removable chrome plated wire grid tray.
  • Heated by Incoloy sheathed elements positioned in the side fan ducts.
  • The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and integral overheat system by using 2 individual Pt100 sensors. Advance features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs.
  • The control panel is fitted on the side of the unit.
  • Internal Vacuum set up. 3 x 2 way manifold internal mounted along the top of the chamber  which connects to an external vacuum pump (Pump not included)

pdf icon Print / Download Genlab Prime XL Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
