Machines & equipment for sale

Donaldson Torit (DCE) Syvac Vacuum Baghouse Dust Extractor, Excluding Fan Unit

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
EF2289
Manufacturer
Donaldson Torit (DCE)
Model
DCE HV 538
Year of Manufacture
10 / 2024
Serial
18351480
Condition
From a working environment, Excellent Condition
Approx Duty CFM / M³/Hr
Upto 1412CFM // 2400M3/Hr
Filter Area ft² / m²
4102ft // 38M2
Other Info
ST2 Conductive Dust + Explosion Relief
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
2100
External Dimensions (WxDxH mm) [?]
2636 x 1758 x 5990mm
Delivery
Your delivery options

Description

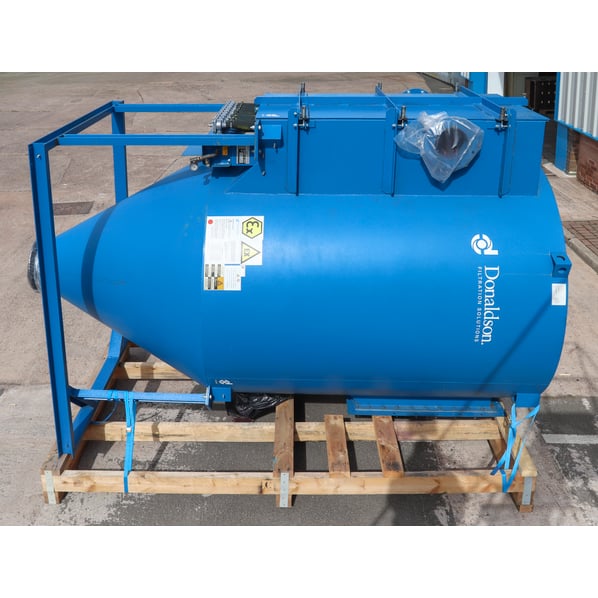

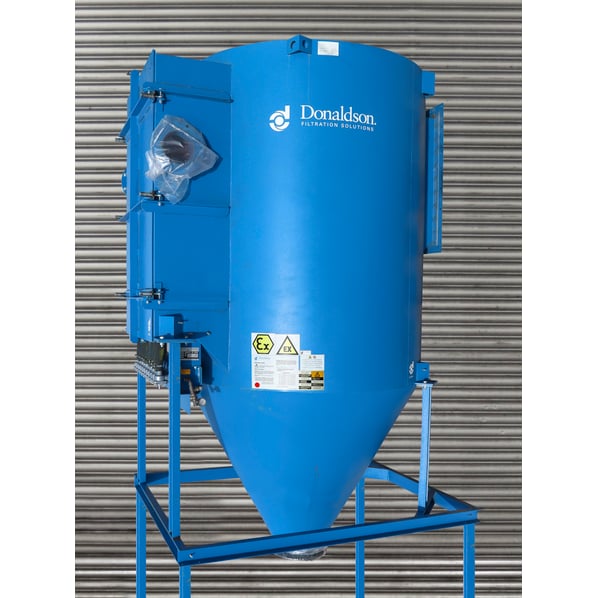

The Donaldson Torit Syvac H 538 is a modern central vacuum dust collection system, manufactured in 2024, designed to provide efficient facility wide extraction with capacity up to 2,400 m³/hr. Built for demanding industrial environments, this system delivers reliable dust control from multiple user points across a wide range of applications. A reverse pulse cleaning system allows for continuous operation.

Fan Requirement

This item does not include a fan unit which will be required for use. A wide selection of fans are available so you can customise the complete system unit to suit your needs.

Please ask for details.





Ideal for industries including metalworking, engineering, chemical, pharmaceutical, food, textile and manufacturing, the Syvac system is suitable for handling ST2 conductive dust applications, providing a robust solution where effective collection and safe dust management are critical.

Featuring a proven centrifugal exhauster, high efficiency filtration and smooth flow pipework, the system allows multiple operators to use the central vacuum network simultaneously without the need to move heavy extraction equipment. Collected dust and debris are conveyed back to a central collection point, simplifying disposal and improving workplace efficiency.

The remote vacuum source design also helps reduce noise levels in occupied production areas, while the flexible pipework layout and range of compatible accessories allow the system to be tailored to suit different facility requirements.

Key Benefits

  • Designed for airflow capacity up to 2,400 m³/hr.
  • Suitable for ST2 conductive dust applications.
  • Centralised dust collection for multiple workstations.
  • Multiple user operation capability.
  • Efficient baghouse filtration.
  • Proven centrifugal exhauster technology.
  • Reduced requirement for portable extraction equipment.
  • Quiet operation with remote vacuum source.
  • Flexible hose, tooling and accessory options.
  • Reverse pulse cleaning system allows for continuous operation.

Specification

  • Model: Donaldson Torit DCE Syvac H 538.
  • Filtration area: 38m².
  • Dimensions(WxDxH): 2636mm x 1758mm x 5990mm.
  • Approximate net weight: 1,555kg.
  • Maximum negative operating pressure: 500 mbar.
  • Operating temperature range: -10°C to +60°C.

Controls & Services

  • 10-way controller.
  • Voltage input: AC 105–120V / 200–240V ±10% or 24V DC.
  • Compressed air supply: 5.2 bar.
  • Pulse cleaning duration: 110 milliseconds.
  • Atmospheric air volume: 11.2m³/h (6.6 cfm) at 12-second intervals.

A high-capacity, scalable dust extraction solution, the Donaldson Torit Syvac H 538 provides dependable centralised dust control for modern industrial environments requiring efficient, safe and flexible operation.

pdf icon Print / Download Donaldson Torit (DCE) Syvac Vacuum Baghouse Dust Extractor, Excluding Fan Unit Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
