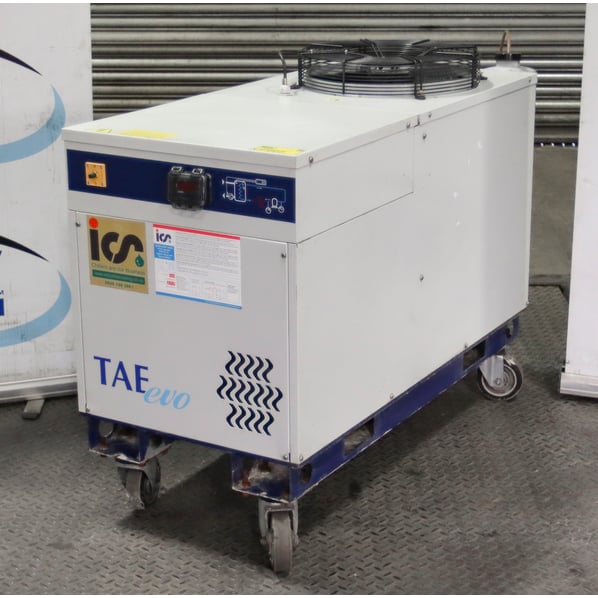

Industrial Cooling Systems (ICS) ICS TAE EVO 015 Package Chiller

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
CF665
Manufacturer
Industrial Cooling Systems (ICS)
Model
ICS TAE EVO 015
Year of Manufacture
07Recon 26
Serial
2200108712
Condition
From a working environment, Good Condition
Ave. cooling capacity
7kW
Ave. Water Flow Rate
4.8m3/Hr
Other Info
R407C Refrigerant
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
127
External Dimensions (WxDxH mm) [?]
570 x 1500 x 900mm
Delivery
Your delivery options

Description

A compact, fully packaged air‑cooled process chiller, this ICS TAE EVO 015 chiller is designed to deliver reliable & energy efficient cooling for a wide range of industrial applications. Featuring a high efficiency scroll compressor with R407C refrigerant and an in‑tank evaporator design.

The unique evaporator is immersed within a generously sized storage tank. This design ensures safe and reliable operation even during large fluctuations in cooling demand, something often encountered within various industrial applications.

Each unit comes with a 3-bar pump as standard with the option to customise with a 5-bar pump, allowing for demanding industrial applications.

 Energy & process efficiency:-

  • High efficiency finned coil in-tank evaporator with copper tubes & aluminium fins allowing for variable flow rates
  • Hydraulic circuit includes integral 3-bar pump, drain valve, overflow & water pressure gauge and process connections
  • Scroll compressor(s) operating with R407C refrigerant
  • Copper tube / aluminium fin condenser coils combined with axial condenser fans

Reliability

  • Internal water bypass to protect pump against dead heading
  • Phase monitor to protect the unit against phase loss & reversal
  • Galvanised, epoxy coated carbon steel structure
  • Electrical panel protection rating: IP44

Features:

  • Process water flow Nom/max - 1.3 / 4.8 m³hr
  • In board buffer tank - 60 litres
  • Connections - 3/4” BSP
  • 3.3kw absorbed power.
  • Optional extra water make up tank fitted
  • Approx. overall size - 560mm x 1320mm x 790mm
  • Dry weight - 152kg
  • Atmospheric fill & vent tank
  • Remote on/off
  • Volt free alarm contact
  • Water pressure gauge
  • Low pressure safety switch
  • High pressure safety switch
  • Antifreeze protection
  • Outlet temperature indication
  • Condensing pressure fan switch
  • Tank level sensor
  • Alarm history

pdf icon Print / Download Industrial Cooling Systems (ICS) ICS TAE EVO 015 Package Chiller Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
