Machines & equipment for sale

8ft Mild Steel Tanks - 17 Available

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Buyer's Premium [?]
10% BP will be added to your invoice
Part of a Direct Site Clearance
Derby Plating Services – Decommissioning Phase of Clearance
Condition
From a working environment, Good Condition
Add to Quote Book Appointment
Stock No
DPS750
Model
Mild Steel Lined Tanks
Serial
N/A
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
2440mm (8ft) wide & 1220mm (4ft) high
Process Stages
Single Stage Per Tank
Other Info
Polypropylene or Rubber Lined
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
Various (See below)
Delivery
Your delivery options

Description

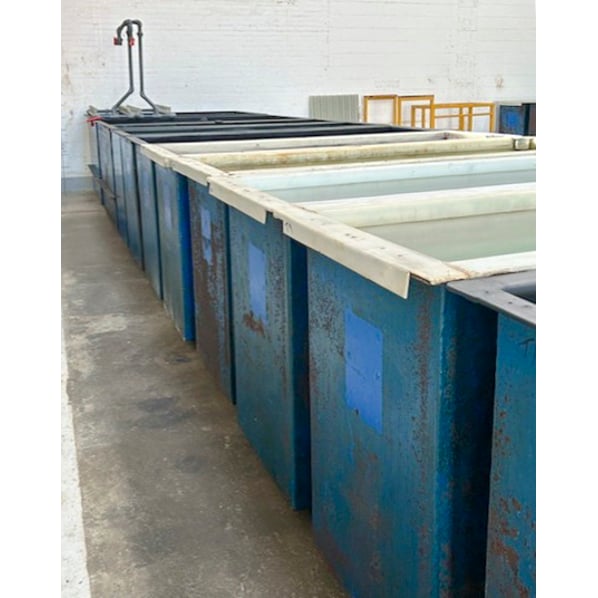

These 8ft, mild steel, lined tanks are available as 17 individual units, originally part of a semi-automated copper nickel chrome plating line, providing a flexible solution for expanding existing operations or establishing the foundation of a new surface treatment process.

Each tank was previously used for a single stage and features durable polypropylene or rubber linings, along with internal and external protective coatings for enhanced longevity.

Designed for practical industrial use, all tanks are fitted with flight bar supports and vary in depth to suit different applications, providing flexibility across production setups. Their heavy-duty mild steel construction and protective linings ensure reliable performance in demanding chemical processing environments.

Specification of Tanks - 17 Available

Large Double (Rubber Lining)

  • Number Available - 2
  • Tank Numbers - 1 & 2
  • Ebonised, (hard) rubber liner
  • No inlet, no outlet
  • Internal dimensions (LxWxH) - 2440mm (8ft)  x 1680mm (5'6ft) x 1220mm (4ft)
  • 8cm flange all round
  • Central support post

Single (Rubber Lining)

  • Number Available - 4
  • Tank Numbers - 4, 5, 10, 12, 13 & 15
  • Ebonised, (hard) rubber liner
  • No inlet, no outlet
  • Internal dimensions (LxWxH) - 2440mm (8ft)  x 760mm (2'6ft) x 1220mm (4ft)
  • 8cm flange all round

Single (No Liner)

  • Number Available - 1
  • Tank Number - 3
  • No liner
  • No inlet, no outlet
  • Internal dimensions (LxWxH) - 2440mm (8ft)  x 760mm (2'6ft) x 1220mm (4ft)
  • 8cm flange all round

Single (Polypropylene Liner)

  • Number Available - 8
  • Tank Number - 6, 7, 8, 9, 11, 14, 16, 19
  • Polypropylene liner
  • 1 ½” PVC inlet, 1 ½” PVC outlet, 1” outlet, (capped)
  • Internal dimensions (LxWxH) - 2440mm (8ft)  x 760mm (2'6ft) x 1220mm (4ft)
  • 10cm flange all round

pdf icon Print / Download 8ft Mild Steel Tanks - 17 Available Datasheet

Additional files

Tank Set Up in Previous Plating Line

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
