Riley 450 Baghouse Dust Collector

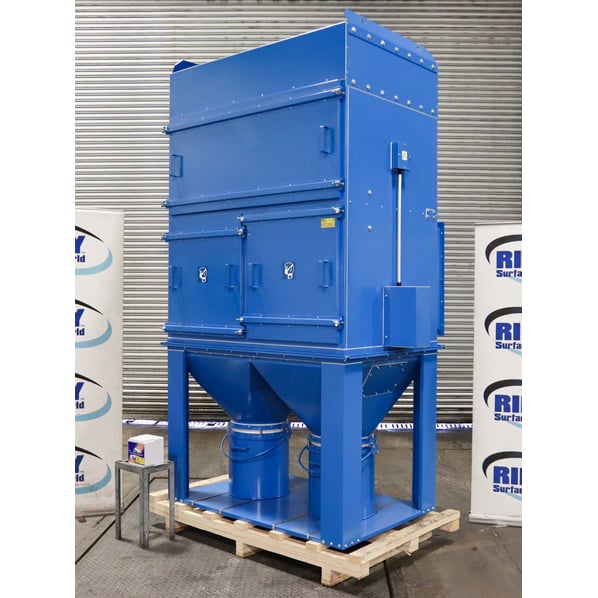

Unimaster Style 450 Series Dry Dust Extractor

Twin Dust Collection Buckets and Quick Release Set Up

Internal View of Electrical Control Panel

Internal View Showing Filter Bag Housing and Fan Set Up

Rear View Showing Explosion Relief Panel and Shaker Motor Set Up

New

Price [?]: £ Login or Register for price
Guarantee: 1 year manufacturer guarantee
Availability: Available for immediate collection
Condition: Unused, Current Model, Seen powered at RSW

Buy Now Add to Quote Contact Us

Finance available for variable duration and just the VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No: EF2283J
Manufacturer: Riley
Model: 450BH
Year of Manufacture: 2026
Condition: Unused, Current Model, Seen powered at RSW
Approx Duty CFM / M³/Hr: 3500 // 6000
Filter Area ft² / m²: 450 ft² // 42m²
Other Info: Atex Rated Ex-Panel. Reinforced Doors
Weight (kgs): 725
External Dimensions (WxDxH mm) [?]: 1990 x 1040 x 2880mm
Delivery

Description

A self-contained collector with everything needed to begin collecting dust, this Riley 450 Baghouse Dust Collector comes complete with fan & fan motor, automatic shaker system, and system controller; making installation quick and easy.

A self-contained collector with everything needed to begin collecting dust, the Unit comes complete with fan & fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy.

This dust collector from is designed to maximize dust collection and the life of the collector components for years of extended service. The compact design provides a quiet operation with efficient, trouble-free service.

Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unit can be used as a central system or at the point of dust generation.

Design Features

ATEX Rated explosion relief panel.
Re-enforced door bars.
Compact design minimises floor space and fits in virtually any plant layout.
Versatility, to suit a variety of dust collection applications.
Quiet & efficient operation, 7.5kw // 10Hp motor fan are enclosed in collector housing to minimize noise.
Inlet deflector plates.
Easy maintenance.
2 x 3ft³ quick release collection buckets.
Quick-release bucket levers allow for easy removal and maintenance of the bin.
The inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
Heavy-duty flexible metal inner bag coils, Inserted into filter bags keep bags open to maximize airflow and assist in knocking the dust off during the cleaning cycle.
Bag-release screws allow for easy removal of bags.
Inlets, 2 x 320 x 180mm

Print / Download Riley 450 Baghouse Dust Collector Datasheet
