Machines & equipment for sale

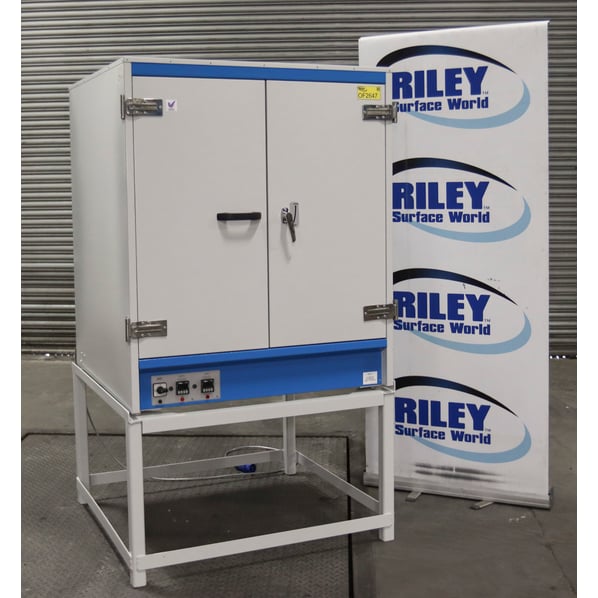

JIM Engineering Ltd. NEW HDH/576/CLAD/F/200/DIG Oven

Stock No
OF2647
Manufacturer
JIM Engineering Ltd.
Model
HDH -576-CLAD-200-DIG
Year of Manufacture
2026
Serial
26C053
Condition
Brand New, Seen powered at RSW
Internal Size (WxDxH mm) [?]
915 x 1030 x 1255
Max Temp
200°C
Other Info
3Kw
Weight (kgs)
325
External Dimensions (WxDxH mm) [?]
1040 x 1030 x 1255
Delivery
Your delivery options

Description

A Riley Thermal World / Jim Engineering, General  purpose heavy duty 300°C oven is up to any task you can ask of it, thanks to its wide temperature range and excellent build quality. These general purpose heavy duty laboratory ovens are reliable, cost-effective and suit most laboratory applications including drying, curing, heating and general use.

Specifications

Capacities of 1180 litres
Temperature range to 200°C
EW 4820 Digital dual display controller +/- 0.3°C
Powder coated body is easy to clean
Calibrated dial safety thermostat fluctuation typically +/-0.75°C
CE marked
Full 12 months parts & labour warranty

Design:

The exterior cabinet is manufactured from sheet steel finished in a powder coat paint finish for a durable and
easy clean finish.

The process chamber is constructed from aluminium clad for easy cleaning and durability. The plated steel shelves are adjustable on fixed shelf runners;

Areas of application:

General Engineering / Thermal processing
Basic Research / Research Institutes
Electronics / Semiconductor Industry
Plastics / composites Industry
Human / Veterinary Medicines

Heating:

Sheathed Incoloy heating elements are fitted at the base of the chamber. The heating element is fitted
around the fan under the side cover.

Controls:

This models (DIG) is fitted with a PID digital controller with dual display (set and actual) and a direct reading calibrated thermostat for overheat safety protection. Indicator lamps include power, heating and safety protection.

HDH -576-CLAD-200-DIG

Litres 1180

Shelf positions 6

No of shelves 6

External dimensions 1040 x 1030 x 1255 mm

Internal dimensions 915 x 1030 x 1255 mm

Power (watts) 3000

Electrical supply 240v, 50/60Hz, 13.2A

pdf icon Print / Download JIM Engineering Ltd. NEW HDH/576/CLAD/F/200/DIG Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
