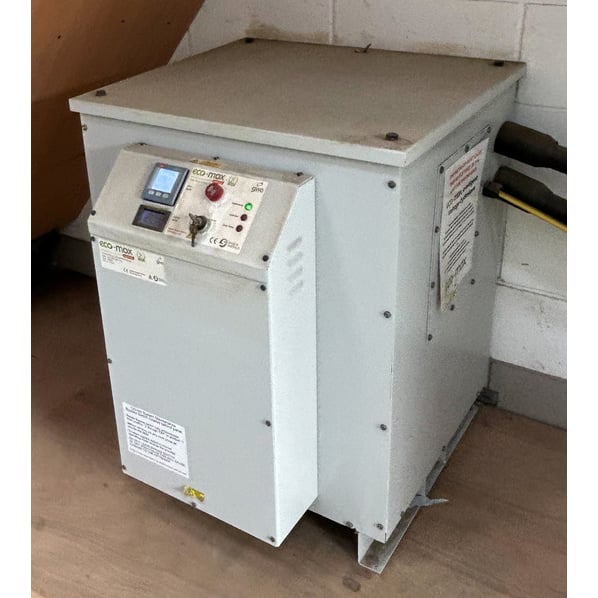

Eco Max 400i Voltage Optimiser
Eco Max 400i Voltage Optimiser
Direct From Site Clearance
- Price [?]
- Please call on +44 (0) 1922 45 8000
- Part of a Direct Site Clearance
- Derby Plating Services - Factory Clearance & Business Opportunity
- Stock No
- DPS370
- Manufacturer
- Eco Max
- Model
- EMC400i
- Year of Manufacture
- 2023
- Serial
- 501855
- Location
- Our Central Warehouse, Aldridge, UK
- Delivery Your delivery options
Description
The eco max voltage optimiser is designed to regulate the incoming voltage supply to a building or facility, ensuring that it operates at the most efficient level.
Offers approximately 7-8 % energy savings
Description | EMC400i |
| Input Volts per phase | Nominal input voltage 216V-253V, 50Hz AC |
| Optimised Output Volts | -6%,-7%,-8%,-9%,-10% of input |
| Continuous Current Rating | 400A 3PH |
| Efficiency | >99.7% |
| Operating Temperature | -5oC to +40oC |
| Humidity | 80% (non-condensing) |
| Dimensions (mm) | 920h x 730w x 770d |
| Weight | 415Kg |
| Terminal Capacity – On Copper Bus Bars | Incoming Live – 10mm Stud Incoming Neutral – 10mm Stud Outgoing Live – 10mm StudOutgoing Neutral – 10mm Stud Earth – 10mm Stud |
| Phase Terminal Tightening Torques | 30-40 Nm |
| Cable Entries | Front, left & right sides(dependent on control box positioning) |
| Control Box Positioning | Front unless otherwise specified, left or right sides as options |
| Frequency | 50Hz |
| On board Status Indication | As Standard c/w Optimising, Inhibit, Over temp LEDs, input multifunction meter, output Voltmeter |
| Remote Status Indication | As standard c/w GSM remote metering & monitoring via PC or smart mobile |
| Audible Alarm | Standard |
| Auto BrownOut Under Voltage Inhibit | Standard |
| Manual Key switch Inhibit | Standard |
| Manual Control Maintenance Bypass | Standard |
| Mounting Fixings | Floor Standing 10mm Hole |
| Enclosure | Mild Steel Powder Coated |
| Ingress Protection | IP31 |
| Standards | IEC 60076 BSEN61439-2:2011 BS EN 60529BS EN 61558 |
Print / Download Eco Max 400i Voltage Optimiser Datasheet
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
